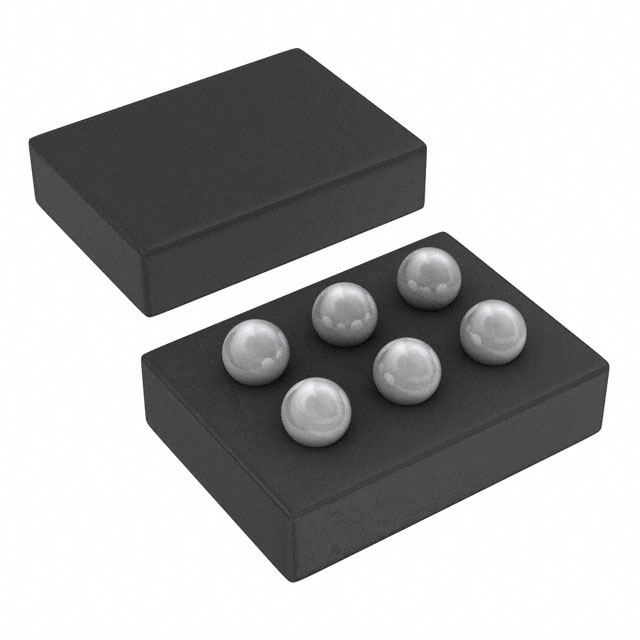

600毫安, 6 MHz的高效率降压转换器芯片级封装 600-mA, 6-MHz HIGH-EFFICIENCY STEP-DOWN CONVERTER IN CHIP SCALE PACKAGING
Buck Switching Regulator IC Positive Fixed 1.82V 1 Output 600mA 6-UFBGA, DSBGA
得捷:
IC REG BUCK 1.82V 600MA 6DSBGA
立创商城:
降压型 Vin=2.3V~5.5V Vout=1.82V 600mA
德州仪器TI:
600-mA, 6-MHz, Vout 1.82V, 90% Efficiency Step-Down Converter
艾睿:
Adjust the voltage level of your devices with this step down TPS62620YFFT DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.6 A. This will operate at a minimum voltage of 2.3 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.82 V, this is power management at its best. Users like the load regulation of -0.0003%/mATyp and line regulation of 0.13%/VTyp. This converter is 90 % efficient. You can operate this at a switching frequency of 6600 kHz. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
Chip1Stop:
Step-Down Regulator 600-mA, 6-MHz, Vout 1.82V, 90% Efficiency Step-Down Converter Conv DC-DC Single Step Down 2.3V to 5.5V 6-Pin DSBGA T/R
Verical:
Conv DC-DC 2.3V to 5.5V Step Down Single-Out 1.82V 0.6A 6-Pin DSBGA T/R
输出接口数 1
输出电压 1.82 V
输出电流 600 mA
静态电流 31.0 µA
调节输出数 1
开关频率 6 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.3 V
输出电压Min 1.82 V
输出电流Max 0.6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 5.5V
输入电压 2.3V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 DSBGA-6
封装 DSBGA-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62620YFFT TI 德州仪器 | 当前型号 | 当前型号 |
TPS62601YFFR 德州仪器 | 类似代替 | TPS62620YFFT和TPS62601YFFR的区别 |
TPS62620YFFR 德州仪器 | 类似代替 | TPS62620YFFT和TPS62620YFFR的区别 |
TPS62600YFFT 德州仪器 | 类似代替 | TPS62620YFFT和TPS62600YFFT的区别 |
