微功率电源电压监控器 MICROPOWER SUPPLY VOLTAGE SUPERVISORS
Supervisor Push-Pull, Totem Pole 1 Channel 8-TSSOP
得捷:
IC SUPERVISOR 1 CHANNEL 8TSSOP
立创商城:
TLC7701QPWRQ1
德州仪器TI:
Automotive, micropower supply voltage supervisor
贸泽:
Supervisory Circuits Auto Catalog McroPWR VLTG Supervisors
艾睿:
This supply voltage supervisory TLC7701QPWRQ1 voltage monitor IC from Texas Instruments protects your sensitive components from hazardous conditions. This device has a maximum power dissipation of 525 mW. Its maximum power dissipation is 525 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a minimum operating supply voltage of 2 V and a maximum of 6 V. It has a typical reset threshold voltage of 1.1 V, with a minimum of 1.04 V and a maximum of 1.16 V.
安富利:
Volt Supervisor Supply 8-Pin TSSOP T/R
Chip1Stop:
Volt Supervisor Supply Automotive 8-Pin TSSOP T/R
Win Source:
IC SUPERVISOR 1 CHANNEL 8TSSOP / Supervisor Push-Pull, Totem Pole 1 Channel 8-TSSOP
耗散功率 525 mW
静态电流 9.00 µA
阈值电压 1.1 V
复位电压Min 1.04 V
复位电压Max 1.16 V
工作温度Max 125 ℃
工作温度Min 40 ℃
耗散功率Max 525 mW
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount

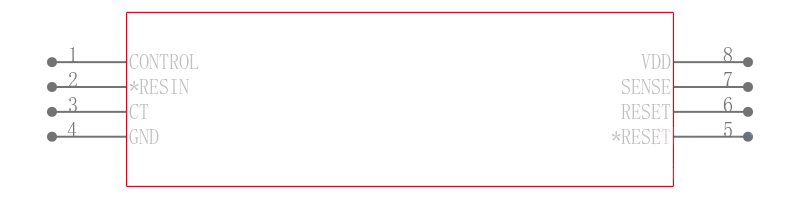

引脚数 8

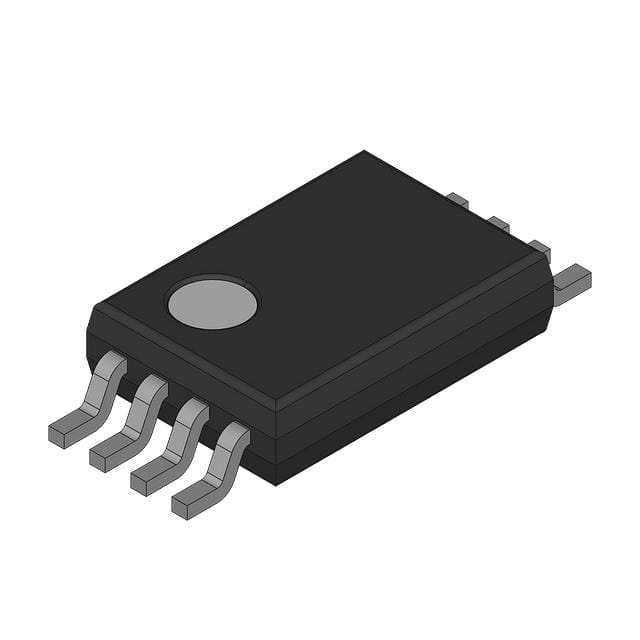

封装 TSSOP-8
长度 3 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-8
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC7701QPWRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TLC7701IPWR 德州仪器 | 类似代替 | TLC7701QPWRQ1和TLC7701IPWR的区别 |
TLC7701QPWR 德州仪器 | 类似代替 | TLC7701QPWRQ1和TLC7701QPWR的区别 |
TLC7701QPWREP 德州仪器 | 类似代替 | TLC7701QPWRQ1和TLC7701QPWREP的区别 |
