同步降压FET驱动器优化的高频应用 Synchronous Buck FET Driver Optimized for High-Frequency Applications
The power driver from Texas Instruments can provide management of your transistors and switches. This device has a maximum propagation delay time of 40typ ns. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a minimum operating supply voltage of 4.5 V and a maximum of 28 V. This gate driver has a minimum operating temperature of -40 °C and a maximum of 105 °C.
上升/下降时间 30ns, 8ns
输出接口数 2
上升时间 30 ns
输出电流Max 4 A
下降时间 10 ns
下降时间Max 10 ns
上升时间Max 30 ns
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 8

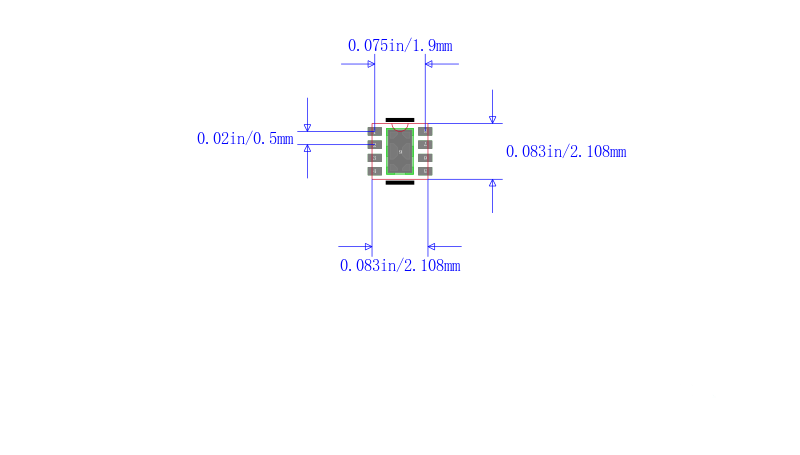

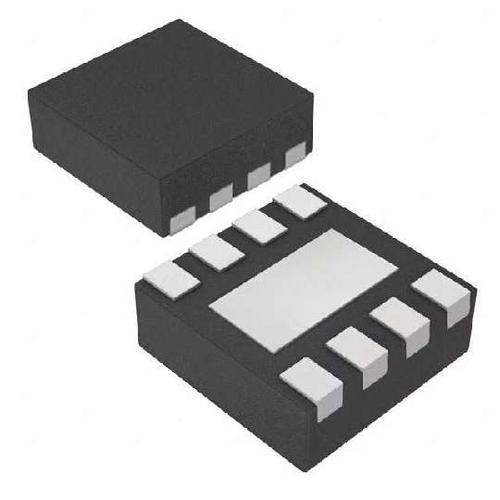

封装 WFDFN-8
封装 WFDFN-8
工作温度 -40℃ ~ 105℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS51604DSGR TI 德州仪器 | 当前型号 | 当前型号 |
TPS51604DSGT 德州仪器 | 完全替代 | TPS51604DSGR和TPS51604DSGT的区别 |
