800毫安, 3 MHz的高效率降压转换器 800-mA , 3-MHz HIGH-EFFICIENCY STEP-DOWN CONVERTER
Buck Switching Regulator IC Positive Fixed 3V 1 Output 800mA 6-XFBGA, DSBGA
得捷:
IC REG BUCK 3V 0.8A SYNC 6DSBGA
立创商城:
降压型 Vin=2.3V~4.8V Vout=3V 800mA
德州仪器TI:
800-mA, 3-MHz High-Efficiency Step-Down Converter. 3.0V fixed Output voltage.
贸泽:
开关稳压器 800mA 3MHz Hi-Eff SD Cnvtr
艾睿:
Adjust the voltage level of your devices with this step down TPS62698YFDT DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.8 A. This will operate at a minimum voltage of 2.2 V and a maximum voltage of 4.8 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of -0.0003%/mATyp and line regulation of 0.18%/VTyp. This converter is 95 % efficient. It has a switching frequency of 2700 to 3300 kHz. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This converter has an operating temperature range of -40 °C to 85 °C.
Verical:
Conv DC-DC 2.3V to 4.8V Synchronous Step Down Single-Out 3V 0.8A 6-Pin DSBGA T/R
输出接口数 1
输出电压 3 V
输出电流 800 mA
静态电流 19.0 µA
调节输出数 1
开关频率 3 MHz
拓扑结构 Buck
输入电压Max 4.8 V
输入电压Min 2.3 V
输出电压Min 3 V
输出电流Max 0.8 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Min 2.3 V
输入电压 4.8 V
安装方式 Surface Mount
引脚数 6

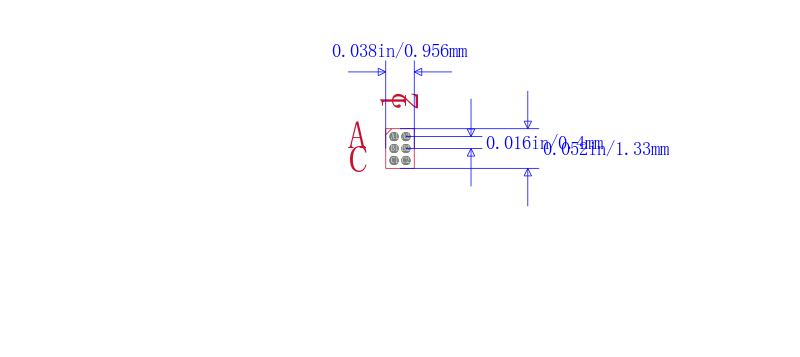

封装 DSBGA-6
封装 DSBGA-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62698YFDT TI 德州仪器 | 当前型号 | 当前型号 |
TPS62693YFDT 德州仪器 | 类似代替 | TPS62698YFDT和TPS62693YFDT的区别 |
TPS62693YFDR 德州仪器 | 类似代替 | TPS62698YFDT和TPS62693YFDR的区别 |
TPS62698YFDR 德州仪器 | 类似代替 | TPS62698YFDT和TPS62698YFDR的区别 |
