TLV62065DSGR

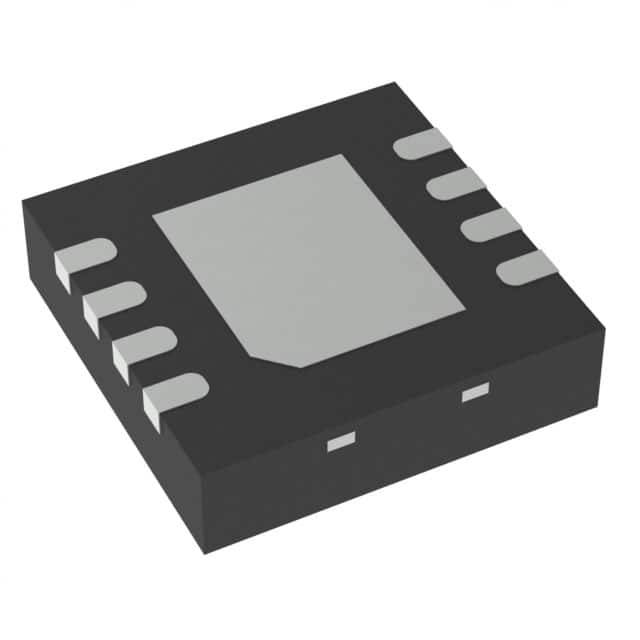

TLV62065DSGR图片1

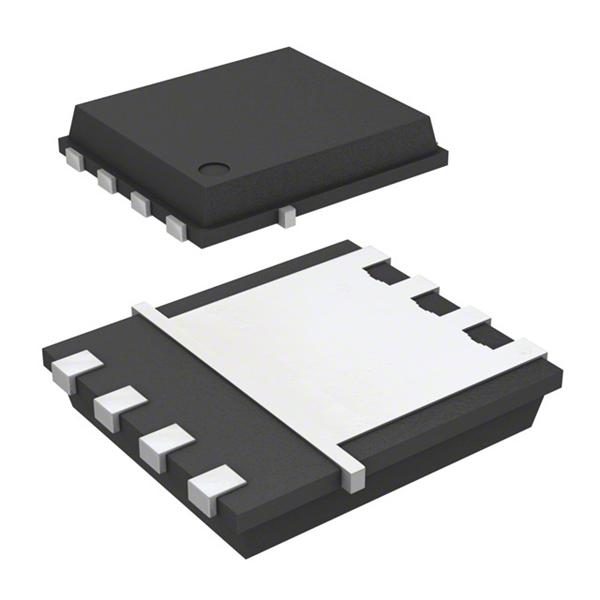

TLV62065DSGR图片2

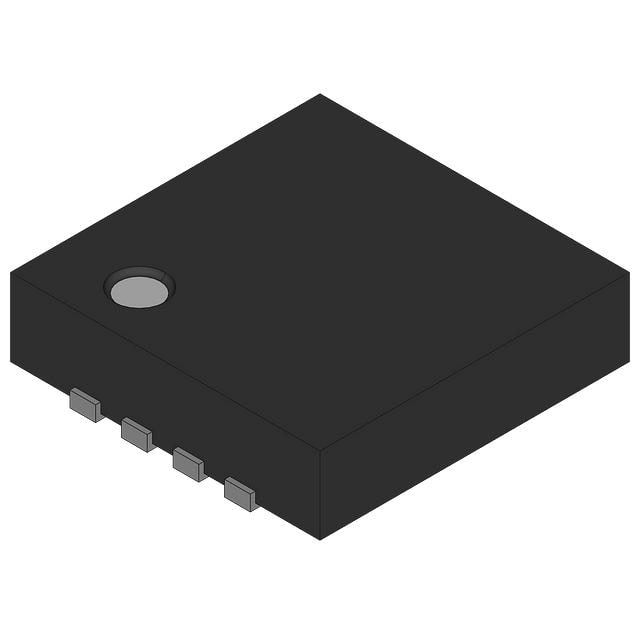

TLV62065DSGR图片3
TLV62065DSGR图片4
TLV62065DSGR图片5
TLV62065DSGR图片6
TLV62065DSGR图片7
TLV62065DSGR图片8
TLV62065DSGR概述

3 MHz的2A降压转换器采用2x2 SON封装 3-MHz 2A Step Down Converter in 2x2 SON Package

降压 开关稳压器 IC 正 可调式 0.8V 1 输出 2A 8-WFDFN 裸露焊盘


立创商城:
降压型 Vin=2.9V~5.5V Vout=800mV~5.5V 2A


得捷:
IC REG BUCK ADJUSTABLE 2A 8WSON


德州仪器TI:
3MHz 2A Step Down Converter in 2x2 SON Package


艾睿:
Adjust the voltage level of your devices with this step down TLV62065DSGR DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 2 A. Using the part will provide the power your application needs by requiring a voltage only of 2.9 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 0.8 to 5.5 V, this is power management at its best. A load regulation of -0.5%/ATyp and line regulation of 0%/VTyp is necessary for providing a constant voltage level at your output. This converter is 97 % efficient. You can operate this at a switching frequency of 3400 kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.


安富利:
Conv DC-DC Single Step Down 2.9V to 5.5V 8-Pin WSON EP T/R


Chip1Stop:
Conv DC-DC 2.9V to 5.5V Step Down Single-Out 0.8V to 5.5V 2A 8-Pin WSON EP T/R


Verical:
Conv DC-DC 2.9V to 5.5V Synchronous Step Down Single-Out 0.8V to 5.5V 2A 8-Pin WSON EP T/R


DeviceMart:
IC REG BUCK SYNC ADJ 2A 8WSON


Win Source:
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 8-WFDFN Exposed Pad


TLV62065DSGR中文资料参数规格
技术参数

输出接口数 1

输出电压 0.8V ~ 5.5V

输出电流 2 A

静态电流 18.0 mA

调节输出数 1

开关频率 3 MHz

拓扑结构 Buck

输入电压Max 5.5 V

输入电压Min 2.9 V

输出电压Max 5.5 V

输出电压Min 0.8 V

输出电流Max 2 A

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.9 V

输入电压 2.9V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 WFDFN-8

外形尺寸

封装 WFDFN-8

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

香港进出口证 NLR

数据手册

TLV62065DSGR引脚图与封装图
TLV62065DSGR引脚图
TLV62065DSGR封装图
TLV62065DSGR封装焊盘图
在线购买TLV62065DSGR
型号: TLV62065DSGR
制造商: TI 德州仪器
描述:3 MHz的2A降压转换器采用2x2 SON封装 3-MHz 2A Step Down Converter in 2x2 SON Package
替代型号TLV62065DSGR
型号/品牌 代替类型 替代型号对比

TLV62065DSGR

TI 德州仪器

当前型号

当前型号

TLV62065DSGT

德州仪器

完全替代

TLV62065DSGR和TLV62065DSGT的区别
