精密可调电流限制的配电开关 PRECISION ADJUSTABLE CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES
Use this usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. The best way to provide power to your application is by using this, which needs a voltage of at least 2.5 V and no higher than 6.5 V. Its current limit is 1.2Max A. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电流 1.5 A
耗散功率 625 mW
上升时间 1100 µs
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电流Max 1.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 625 mW
电源电压Max 6.5 V
电源电压Min 2.5 V
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount

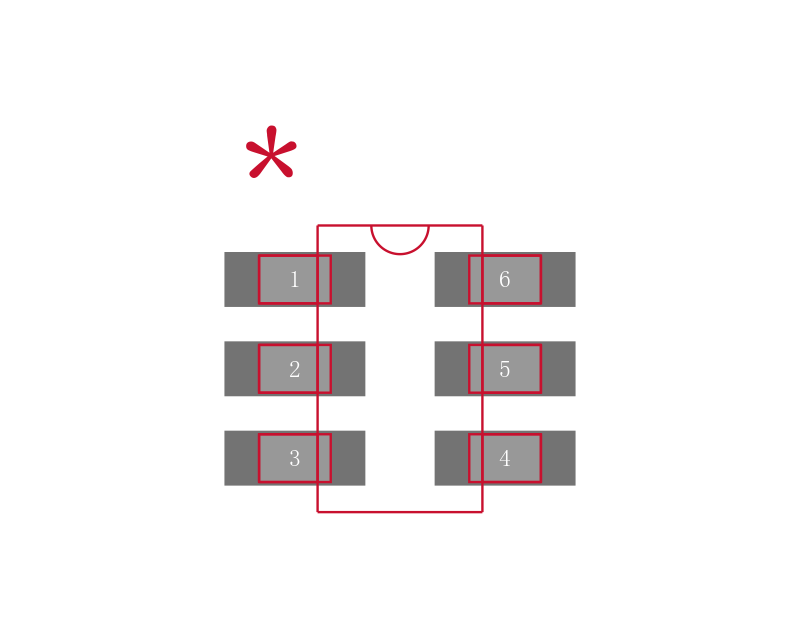

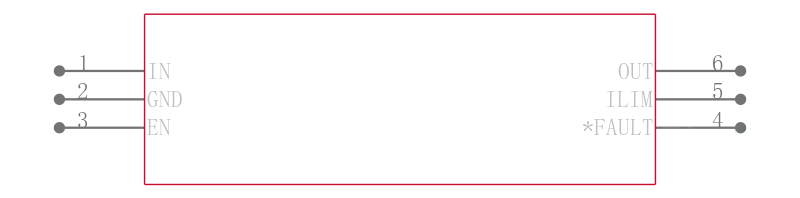

引脚数 6

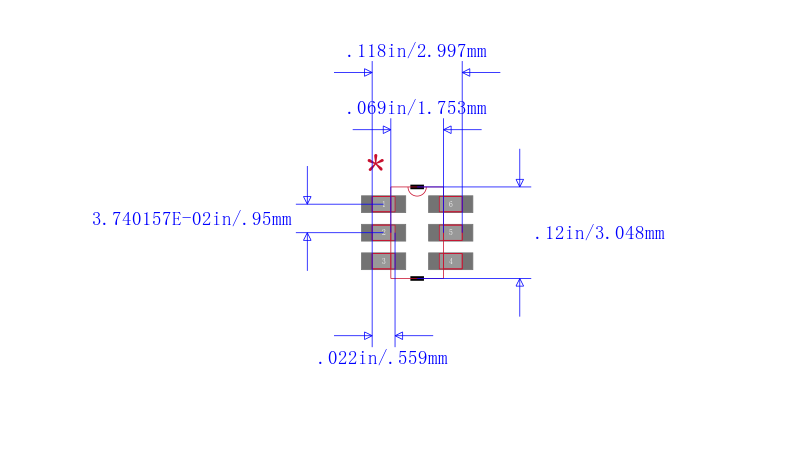

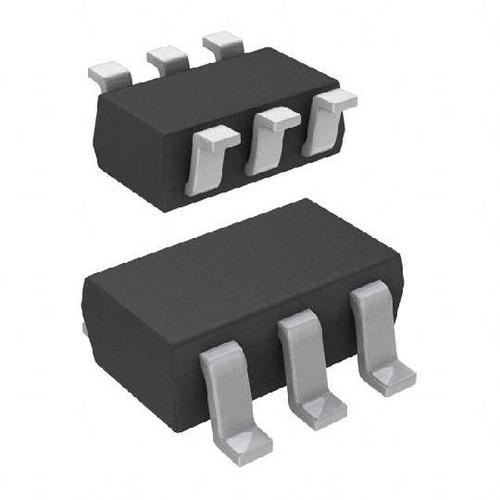

封装 SOT-23-6
封装 SOT-23-6
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2552DBVR-1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS2552DBVR 德州仪器 | 完全替代 | TPS2552DBVR-1和TPS2552DBVR的区别 |
TPS2552DBVT-1 德州仪器 | 完全替代 | TPS2552DBVR-1和TPS2552DBVT-1的区别 |
TPS2552DBVT 德州仪器 | 类似代替 | TPS2552DBVR-1和TPS2552DBVT的区别 |
