精密可调电流限制的配电开关 PRECISION ADJUSTABLE CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES
Use this usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. Use this part at voltages between 2.5 V and 6.5 V. Its current limit is 1.2Max A. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This USB powered network switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电流 1.5 A
耗散功率 1330 mW
上升时间 1100 µs
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电流Max 1.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1330 mW
电源电压Max 6.5 V
电源电压Min 2.5 V
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount

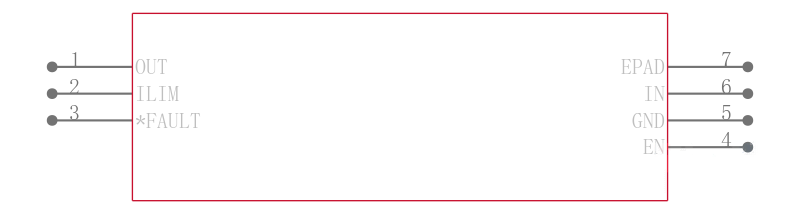

引脚数 6

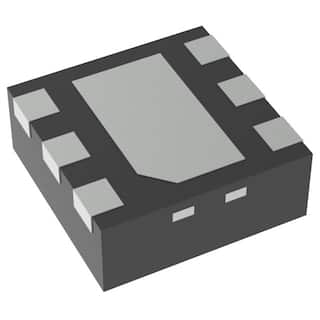

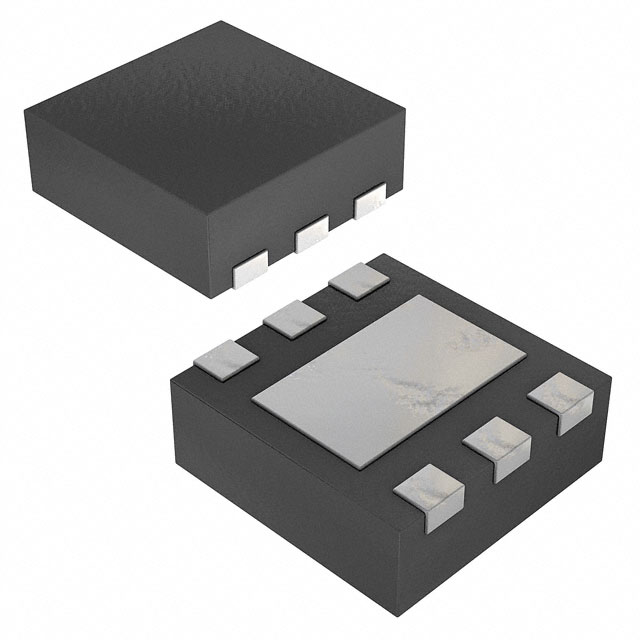

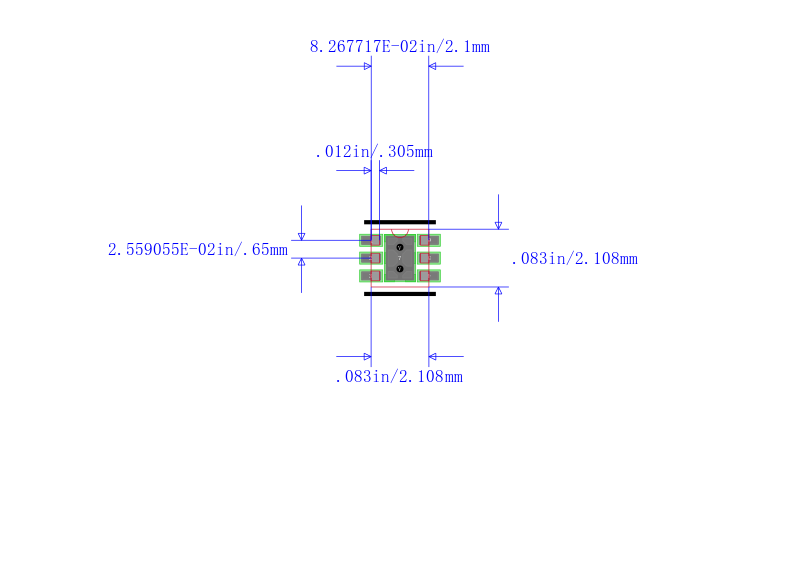

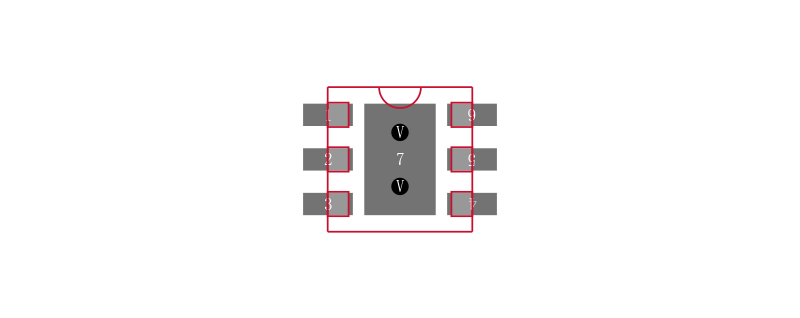

封装 WSON-6
封装 WSON-6
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS2552DRVR-1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS2552DRVR 德州仪器 | 完全替代 | TPS2552DRVR-1和TPS2552DRVR的区别 |
TPS2552DRVT-1 德州仪器 | 完全替代 | TPS2552DRVR-1和TPS2552DRVT-1的区别 |
TPS2552DBVR 德州仪器 | 功能相似 | TPS2552DRVR-1和TPS2552DBVR的区别 |
