TPS2065DGNG4概述

限流配电开关 CURRENT-LIMITED, POWER-DISTRIBUTION SWITCHES

Use this high side switch and usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. By only needing an input voltage of 2.7 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. Its current limit is 1.5 A. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.

TPS2065DGNG4中文资料参数规格
技术参数

输出接口数 1

输入电压DC 5.50 V

耗散功率 1712.3 mW

上升时间 600 µs

输入电压Max 5.5 V

输入电压Min 2.7 V

输出电流Max 1 A

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1712.3 mW

输入电压 2.7V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 PowerPad-MSOP-8

外形尺寸

高度 0.95 mm

封装 PowerPad-MSOP-8

物理参数

工作温度 -40℃ ~ 125℃ TJ

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

TPS2065DGNG4引脚图与封装图

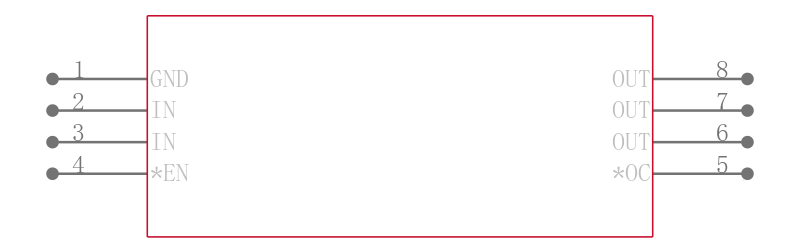

TPS2065DGNG4引脚图

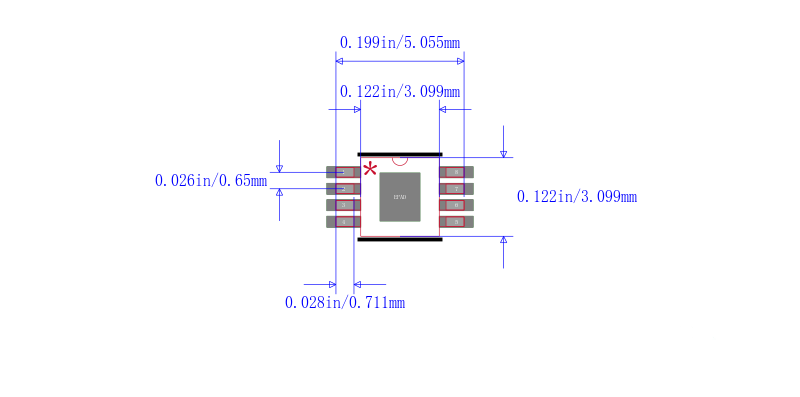

TPS2065DGNG4封装图

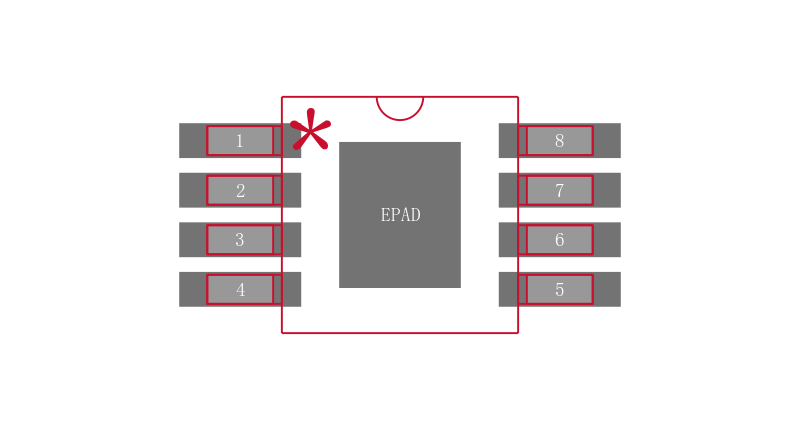

TPS2065DGNG4封装焊盘图
在线购买TPS2065DGNG4
型号: TPS2065DGNG4
制造商: TI 德州仪器
描述:限流配电开关 CURRENT-LIMITED, POWER-DISTRIBUTION SWITCHES
替代型号TPS2065DGNG4
型号/品牌 代替类型 替代型号对比

TPS2065DGNG4

TI 德州仪器

当前型号

当前型号

TPS2065DGN-1

德州仪器

完全替代

TPS2065DGNG4和TPS2065DGN-1的区别

TPS2065DGNR-1

德州仪器

完全替代

TPS2065DGNG4和TPS2065DGNR-1的区别

TPS2065DGNRG4

德州仪器

完全替代

TPS2065DGNG4和TPS2065DGNRG4的区别
