单节至 3.3V 20mA 超低静态电流充电泵 10-VSSOP -40 to 85
充电泵 开关稳压器 IC 正 固定 2Vin,3.3V 2 输出 40mA,20mA 10-TFSOP,10-MSOP(0.118",3.00mm 宽)
得捷:
IC REG CHARGE PUMP DL 10VSSOP
立创商城:
TPS60310DGSR
德州仪器TI:
Single-cell to 3.3-V, 20-mA ultra-low quiescent current charge pump and open-drain power-good output
艾睿:
Increase or decrease the voltage level of your devices with this TPS60310DGSR charge pump voltage doubler from Texas Instruments! With an output that has a voltage of 1.8 to 3.6|3.3 V, this is power management at its best. Its output produces a current of 40Max|20Max mA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This inverting charge pump has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 0.9 V and a maximum of 1.8 V.
安富利:
Charge Pump STPUP 1.8V to 3.6V/3.3V 40mA/20mA 10-Pin VSSOP T/R
Verical:
Charge Pump STPUP 1.8V to 3.6V/3.3V 40mA/20mA 10-Pin VSSOP T/R
DeviceMart:
IC REG BOOST SWITCHED CAP 10MSOP
Win Source:
Charge Pump Switching Regulator IC Positive Fixed 2Vin, 3.3V 2 Output 40mA, 20mA 10-TFSOP, 10-MSOP 0.118", 3.00mm Width
输出接口数 2
输出电压 3.60 V
输出电流 40mA, 20mA
耗散功率 0.424 W
静态电流 2.00 µA
调节输出数 1
输出功率 424 mW
开关频率 700 kHz
过温保护 No
拓扑结构 Boost
输入电压Max 1.8 V
输入电压Min 0.9 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 424 mW
输入电压 0.9V ~ 1.8V
安装方式 Surface Mount
引脚数 10

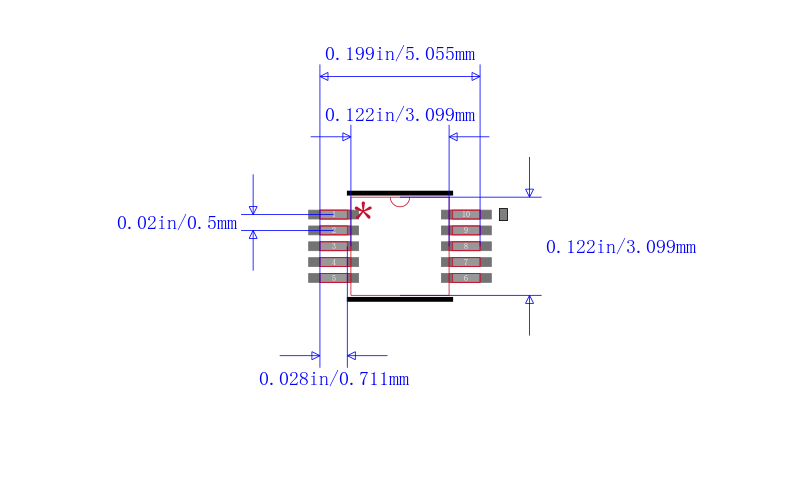

封装 VSSOP-10
宽度 3 mm
封装 VSSOP-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS60310DGSR TI 德州仪器 | 当前型号 | 当前型号 |
TPS60310DGSG4 德州仪器 | 完全替代 | TPS60310DGSR和TPS60310DGSG4的区别 |
TPS60310DGS 德州仪器 | 类似代替 | TPS60310DGSR和TPS60310DGS的区别 |
TPS60310DGSRG4 德州仪器 | 类似代替 | TPS60310DGSR和TPS60310DGSRG4的区别 |
