无电容, NMOS , 250毫安低压差稳压器具有反向电流保护 Cap-Free, NMOS, 250mA Low Dropout Regulator with Reverse Current Protection

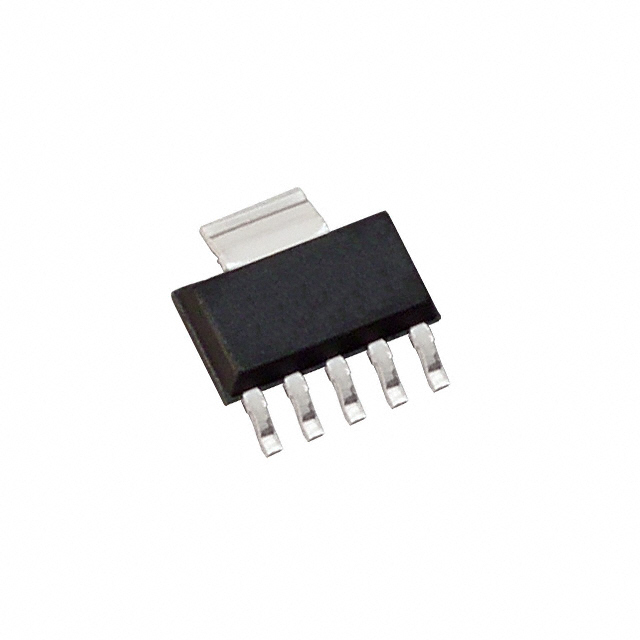

Linear Voltage Regulator IC 1 Output 250mA SOT-223-6
立创商城:
正 Vin=5.5V Vout=2.5V 250mA
德州仪器TI:
250-mA, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable
贸泽:
LDO Voltage Regulators Cap-Free NMOS 250-mA
艾睿:
This LDO TPS73225DCQ linear regulator from Texas Instruments gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.04@250mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.25 A. Using the part will provide the power your application needs by requiring a voltage only of 1.7 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Users like the load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 0.15@250mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 2.5V 0.25A 6-Pin5+Tab SOT-223 Tube
Chip1Stop:
Single Channel LDO Single Output LDO, 250mA, Fixed2.5V, Fast Transient Response, Reverse Current Protection LDO Regulator Pos 2.5V 0.25A 6-Pin5+Tab SOT-223 Tube
Verical:
LDO Regulator Pos 2.5V 0.25A 6-Pin5+Tab SOT-223 Tube
Newark:
# TEXAS INSTRUMENTS TPS73225DCQ Fixed LDO Voltage Regulator, 1.7V to 5.5V, 40mV Dropout, 2.5Vout, 250mAout, SOT-223-6
DeviceMart:
IC REG LDO 2.5V .25A SOT223-6
输出接口数 1
输出电压 2.5 V
输出电流 250 mA
耗散功率 2220 W
静态电流 0.4 mA
输出电容类型 Ceramic
跌落电压 0.04V @250mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 6
封装 SOT-223-6
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 SOT-223-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73225DCQ TI 德州仪器 | 当前型号 | 当前型号 |
TPS73225DCQR 德州仪器 | 类似代替 | TPS73225DCQ和TPS73225DCQR的区别 |
TPS73225DCQG4 德州仪器 | 类似代替 | TPS73225DCQ和TPS73225DCQG4的区别 |
TPS73225DCQRG4 德州仪器 | 类似代替 | TPS73225DCQ和TPS73225DCQRG4的区别 |
