TPS71933-33DRVT

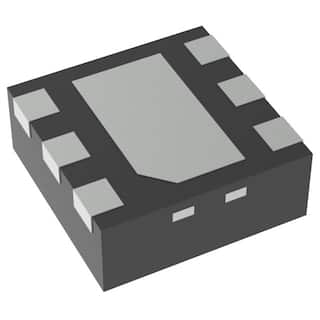

双通道， 200mA输出，低噪声，高PSRR低压差线性稳压器，采用2mm x 2mm SON封装 Dual, 200mA Output, Low Noise, High PSRR Low-Dropout Linear Regulators in 2mm x 2mm SON Package

PMIC - 稳压器 - 线性 正 固定 输出 200mA 6-WSON（2x2）

得捷:
IC REG LINEAR 3.3V 200MA 6WSON

立创商城:
TPS71933-33DRVT

德州仪器TI:
200-mA, low-IQ, high-PSRR, dual-channel low-dropout voltage regulator with active pulldown

贸泽:
低压差稳压器 Dual 200mA Out Low Noise High PSRR

艾睿:
Stable voltages are always needed for sensitive systems implement this LDO TPS71933-33DRVT linear regulator from Texas Instruments. It has an overall accuracy of ±2.5 %. This device has a maximum power dissipation of 1053 mW. Its typical dropout voltage at current is 0.23@200mA V. This voltage regulation device&s;s 2 outputs can produce a current up to 0.2|0.2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 6.5 V. With a fixed output that has a voltage of 3.3|3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 75uV/mATyp and line regulation of 130uV/VTyp. Its maximum power dissipation is 1053 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.4@200mA V.

安富利:
LDO Regulator Pos 3.3V3.3V 0.2A/0.2A 6-Pin WSON EP T/R

Chip1Stop:
Dual Channel LDO Dual 200mA Output, Low Noise, High PSRR, Low Dropout, Linear Regulator LDO Regulator Pos 3.3V3.3V 0.2A/0.2A 6-Pin WSON EP T/R

Verical:
LDO Regulator Pos 3.3V3.3V 0.2A/0.2A 6-Pin WSON EP T/R

DeviceMart:
IC REG LDO 3.3V .2A 6SON
