Texas Instruments### 电荷泵转换器,Texas InstrumentsTexas Instruments 易于使用的无电感器电荷泵 IC 提供更简单的小型解决方案,具有高性能。 电荷泵或开关电容器转换器是电感式直流-直流转换器的备选解决方案,且提供比低压降 LDO 调节器更高的效率。
升压电荷泵转换器,Texas Instruments
得捷:
IC REG CHARGE PUMP 3.3V 20HTSSOP
立创商城:
升压型 Vin=1.8V~3.6V Vout=3.3V 100mA
德州仪器TI:
Regulated 100mA, 3.3V high efficiency charge pump DC/DC converter with low-battery detector
欧时:

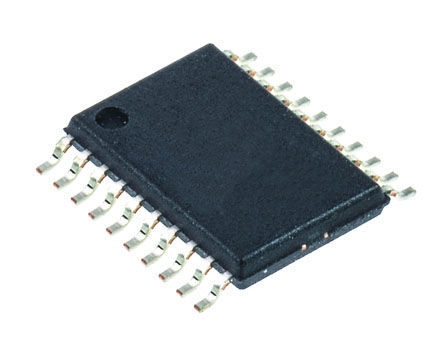

Texas Instruments TPS60122PWP 升压 电荷泵, 3.3 V输出, 20引脚 HTSSOP封装
艾睿:
If you have a circuit where a different voltage is required across multiple components, look no further than Texas Instruments&s; TPS60122PWP charge pump voltage doubler as a solution. With an output that has a voltage of 3.3 V, this is power management at its best. Its output produces a current of 100Min mA. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This inverting charge pump has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 1.8 V and a maximum of 3.6 V.
安富利:
Charge Pump STPUP 3.3V 100mA 20-Pin HTSSOP EP Tube
Verical:
Charge Pump STPUP 3.3V 100mA 20-Pin HTSSOP EP Tube
DeviceMart:
IC REG BST SWITCHED CAP 20HTSSOP
输出接口数 1
输出电压 3.3 V
输出电流 100 mA
耗散功率 0.7 W
静态电流 55.0 µA
调节输出数 1
开关频率 320 kHz
拓扑结构 Boost
输入电压Max 3.6 V
输入电压Min 1.8 V
输出电压Min 3.3 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 700 mW
输入电压 1.8V ~ 3.6V
安装方式 Surface Mount
引脚数 20
封装 HTSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.15 mm
封装 HTSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS60122PWP TI 德州仪器 | 当前型号 | 当前型号 |
TPS60122PWPRG4 德州仪器 | 类似代替 | TPS60122PWP和TPS60122PWPRG4的区别 |
TPS60122PWPR 德州仪器 | 功能相似 | TPS60122PWP和TPS60122PWPR的区别 |
