模拟IC Analog IC
Have variability with different voltages by using this charge pump voltage doubler from Texas Instruments. Its output produces a current of 100Min mA. With an output that has a voltage of 3.3 V, this is power management at its best. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This inverting charge pump has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 1.6 V and a maximum of 3.6 V.
输出接口数 1
输出电压 3.3 V
输出电流 100 mA
耗散功率 424 mW
静态电流 35.0 µA
调节输出数 1
输出功率 424 mW
开关频率 300 kHz
过温保护 No
拓扑结构 Boost
输入电压Max 3.6 V
输入电压Min 1.6 V
输出电压Min 3.3 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 424 mW
电源电压 1.6V ~ 3.6V
输入电压 1.8V ~ 3.6V
安装方式 Surface Mount
引脚数 10

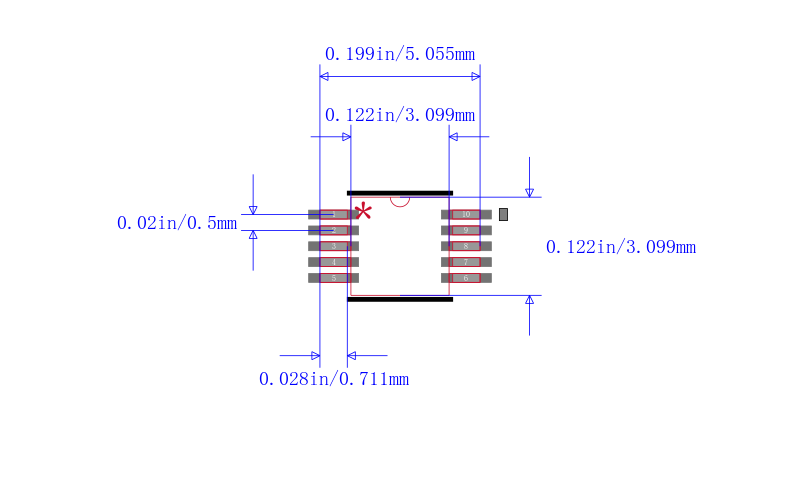

封装 VSSOP-10
封装 VSSOP-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS60205DGSR TI 德州仪器 | 当前型号 | 当前型号 |
TPS60205DGS 德州仪器 | 类似代替 | TPS60205DGSR和TPS60205DGS的区别 |
TPS60205DGSRG4 德州仪器 | 类似代替 | TPS60205DGSR和TPS60205DGSRG4的区别 |
TPS60205DGSG4 德州仪器 | 类似代替 | TPS60205DGSR和TPS60205DGSG4的区别 |
