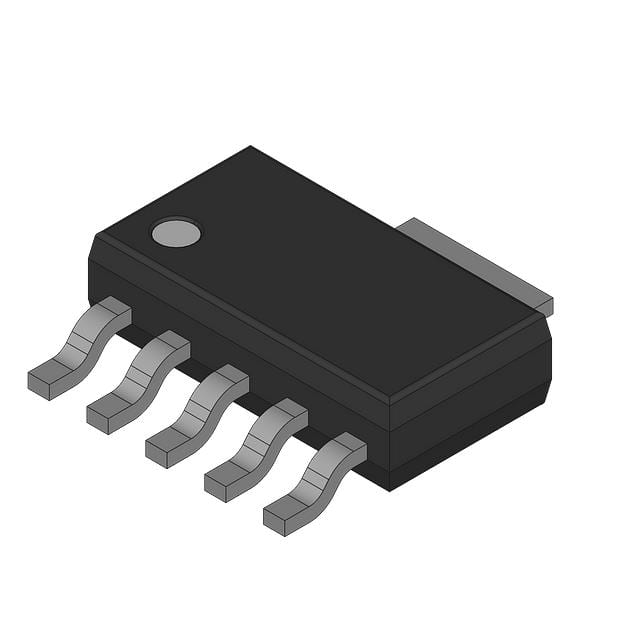

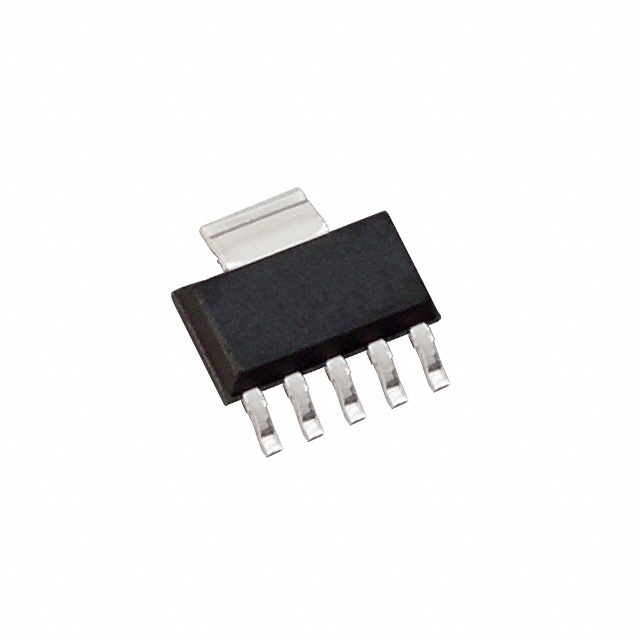

TPS73250DCQ

无电容， NMOS ， 250毫安低压差稳压器具有反向电流保护 Cap-Free, NMOS, 250mA Low Dropout Regulator with Reverse Current Protection

Make a theoretical system actual by providing stable voltages with this LDO linear regulator from Texas Instruments. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.04@250mA V. This voltage regulation device"s single output can produce a current up to 0.25 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.7 V that does not exceed 5.5 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.15@250mA V. Its polarity is positive.
