TEXAS INSTRUMENTS TLV62130ARGTT 直流-直流开关降压逐步递减稳压器, 可调, 4V-17V输入, 900mV-5V输出, 3A输出, QFN-16
The is an easy-to-use synchronous step-down DC-to-DC Converter optimized for applications with high power density. A high switching frequency of typically 2.5MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by use of the DCS-Control™ topology. With their wide operating input voltage range of 3 to 17V, the device is ideally suited for systems powered from either a Li-ion or other batteries as well as from 12V intermediate power rails. It supports up to 3A continuous output current at output voltage from 0.9 to 5V with 100% duty cycle mode. The output voltage startup ramp is controlled by the soft-start pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable and open-drain power good pins. In power save mode, the device draws quiescent current of about 19µA from VIN.
输出接口数 1
输出电压 0.9V ~ 5V
输出电流 3 A
针脚数 16
静态电流 19.0 µA
调节输出数 1
开关频率 2.5 MHz
拓扑结构 Buck
输入电压Max 17 V
输入电压Min 4 V
输出电压Max 5 V
输出电压Min 900 mV
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 17 V
安装方式 Surface Mount
引脚数 16

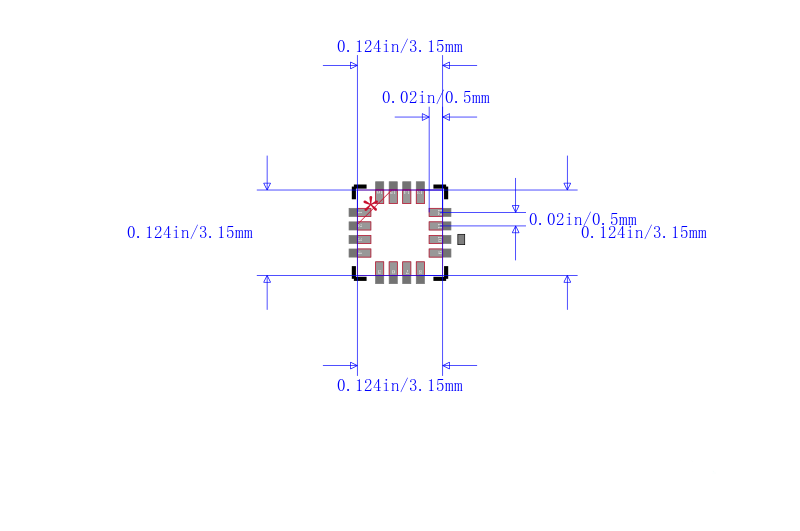

封装 QFN-16
长度 3.15 mm
宽度 3.15 mm
高度 0.95 mm
封装 QFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV62130ARGTT TI 德州仪器 | 当前型号 | 当前型号 |
TLV62130ARGTR 德州仪器 | 类似代替 | TLV62130ARGTT和TLV62130ARGTR的区别 |
