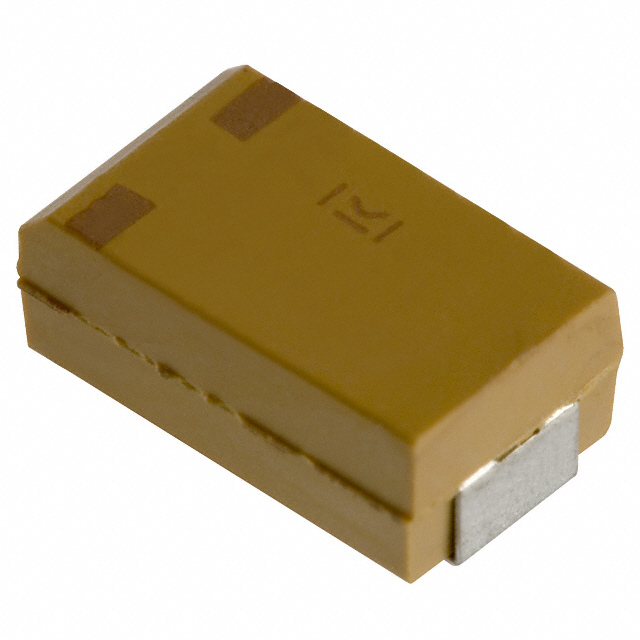

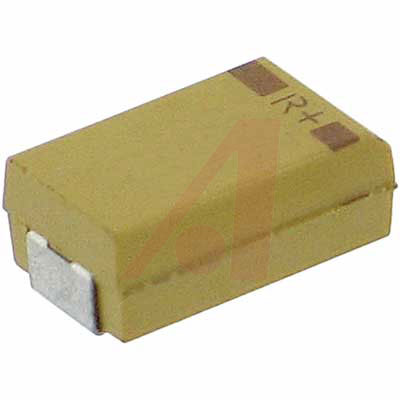

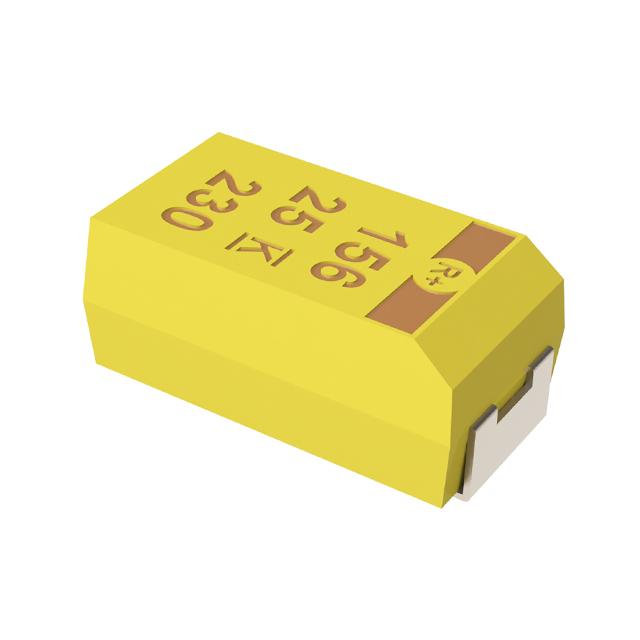

T495D107K016ZTE150

2917 100uF ±10% 16V 3.1mm

Kemet"s family of solid tantalum chip capacitors extend the advantages of solid tantalum technology to today"s surface mount circuit applications. The low ESR, surge robust T495 series is designed primarily for output filtering in switch-mode power supplies and DC-to-DC converters, the standard CV T495 are also an excellent choice for battery-to ground input filter applications. This series offers several important advantages: very low ESR, high ripple current capability, excellent capacitance stability, plus improved ability to withstand high inrush currents.

* Capacitance Range: 0.47 μF to 1000 μF

* Voltage Range: 2.5 - 50 VDC

* Designed Primarily for Output Filtering in Switch-Mode Power Supplies and DC-to-DC Converters

* Very Low ESR

* High Ripple Current Capability

* Excellent Capacitance Stability

* Improved Ability to Withstand High In-Rush Currents

* Case Size: B, C, D and X

* Low Profile Case Size: T and V
