真正的数字音频放大器TAS5110 PWM功率输出级 TRUE DIGITAL AUDIO AMPLIFIER TAS5110 PWM POWER OUTPUT STAGE
DESCRIPON
The TAS5110 is a high-performance true digital audio amplifier TDAA power stage, designed to drive 50 W per channel. The TAS5110 incorporates TI’s equibit technology and is used in conjunction with a digital audio PWM processor TAS50xx to deliver high-power, true digital audio amplification. The efficiency of this digital amplifier can be greater than 90%, reducing the size of both the power supplies and heat sinks needed. The TAS5110 accepts a mono PWM 3.3-V input and controls the switching of an internal CMOS H-bridge.
FEATURES
50-W RMS Power Into 6 Ωat 10% THD
40-W RMS Power Into 6 Ωat 0.1% THD
THD+N < 0.09% Typical 1-kHz Input Signal
93-dB Dynamic Range TDAA System
Power Efficiency > 90% Into 6-Ωand 8-ΩLoad

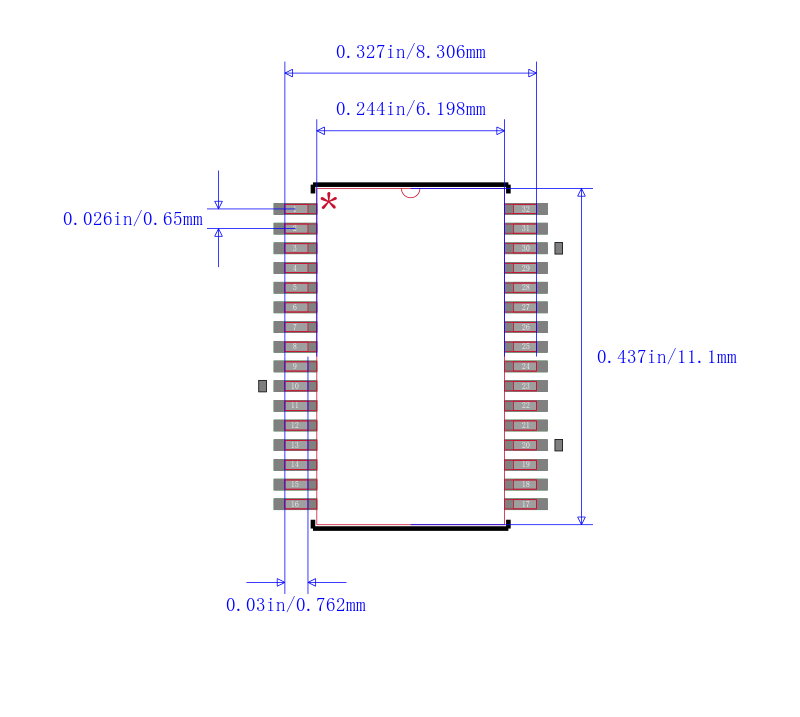

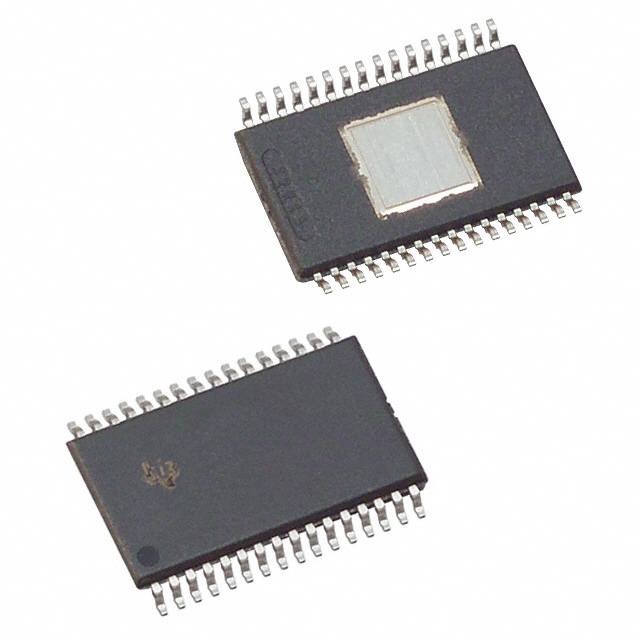

Low Profile, SMD 32-Pin PowerPADPackage
Self-Protecting Design
3.3-V Digital Interface
EMI Compliant When Used With Recommended System Design
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TAS5110DAPR TI 德州仪器 | 当前型号 | 当前型号 |
TAS5110DAD 德州仪器 | 完全替代 | TAS5110DAPR和TAS5110DAD的区别 |
TAS5110ADADG4 德州仪器 | 完全替代 | TAS5110DAPR和TAS5110ADADG4的区别 |
TAS5110ADADRG4 德州仪器 | 完全替代 | TAS5110DAPR和TAS5110ADADRG4的区别 |
