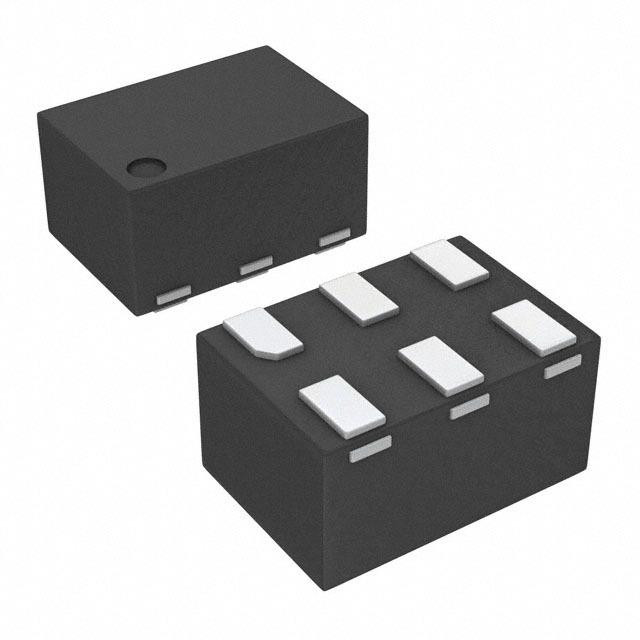

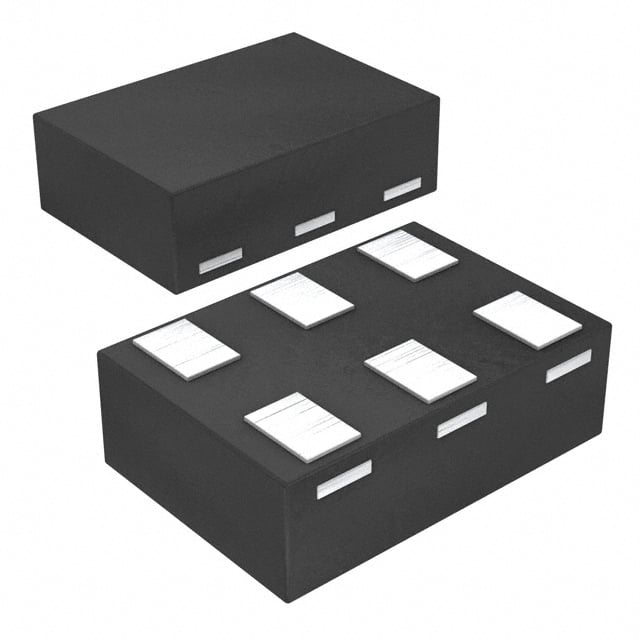

TEXAS INSTRUMENTS TPS3780CDRYT 电压监控器, 低电平有效, 漏极开路复位, 2监视器, 1.5V-6.5V输入, SON-6
Your circuit won"t fail if its main processor goes out thanks to this microprocessor supervisory circuit from Texas Instruments. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This part has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 1.5 V and a maximum of 6.5 V. It has a typical reset threshold voltage of Adj|Adj V, with a minimum of Adj|Adj V and a maximum of Adj|Adj V.
电源电压DC 1.50V min
供电电流 0.0065 mA
针脚数 6
静态电流 2.00 µA
阈值电压 Adjustable
复位电压Max Adjustable
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 6.5 V
电源电压Min 1.5 V
安装方式 Surface Mount
引脚数 6

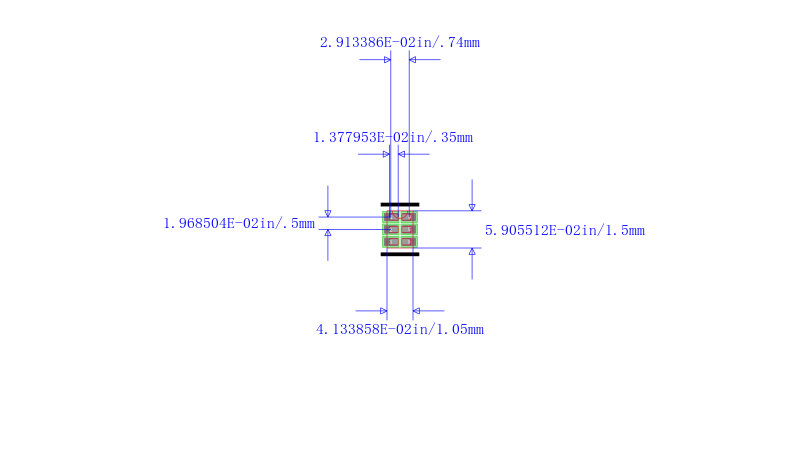

封装 UFDFN-6
封装 UFDFN-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS3780CDRYT TI 德州仪器 | 当前型号 | 当前型号 |
TPS3780CDRYR 德州仪器 | 完全替代 | TPS3780CDRYT和TPS3780CDRYR的区别 |
