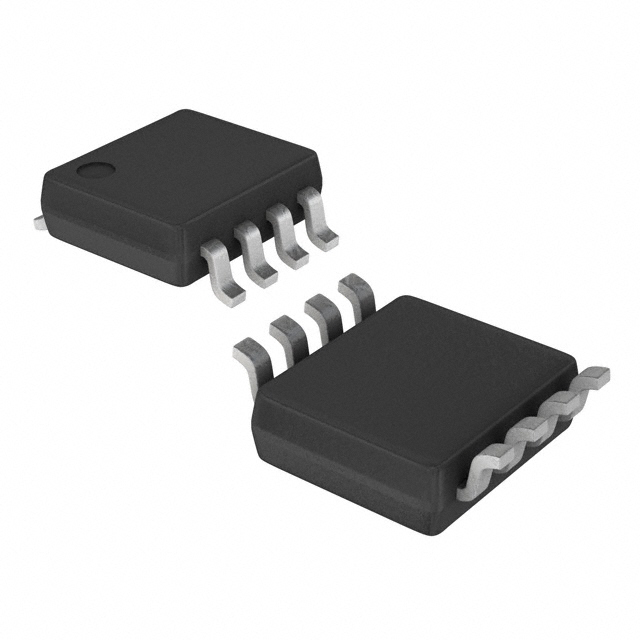

TPS77101DGKR

150 - mA的8引脚MSOP封装的LDO稳压器 150-mA LDO REGULATORS WITH 8-PIN MSOP PACKAGING

PMIC - 稳压器 - 线性 正 可调式 1 输出 150mA 8-VSSOP

立创商城:
TPS77101DGKR

得捷:
IC REG LIN POS ADJ 150MA 8VSSOP

德州仪器TI:
150-mA, 10-V, low-dropout voltage regulator with enable & RESET with delay

艾睿:
Use this LDO TPS77101DGKR linear regulator from Texas Instruments to vary your voltage levels to your desired level. This device has a maximum power dissipation of 412 mW. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.075@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. By only needing an input voltage of 2.7 V with a maximum of 10 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1.5 to 5.5 V, this is power management at its best. By operating at a load regulation of 1mVTyp and line regulation of 0.005%/VTyp you can provide a constant voltage at your output. Its maximum power dissipation is 412 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.

安富利:
LDO Regulator Pos 1.5V to 5.5V 0.15A 8-Pin VSSOP T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Adj.1.5 to 5.5V, Fast Transient Response, SVS LDO Regulator Pos 1.5V to 5.5V 0.15A 8-Pin VSSOP T/R

Verical:
LDO Regulator Pos 1.5V to 5.5V 0.15A 8-Pin VSSOP T/R
