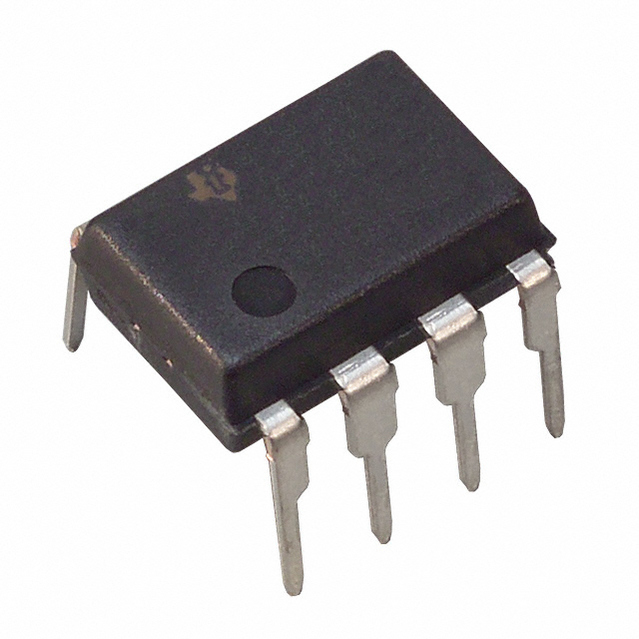

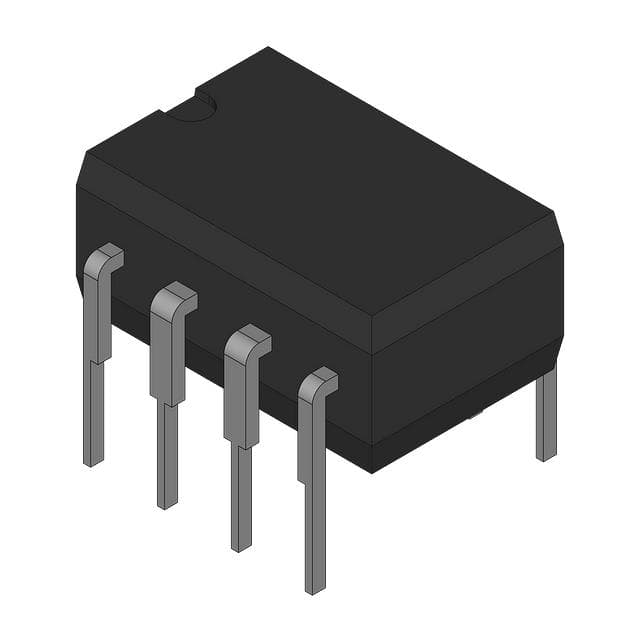

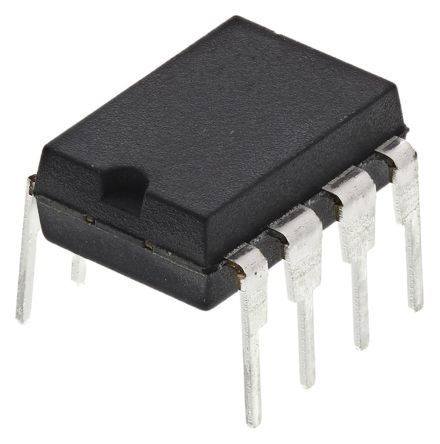

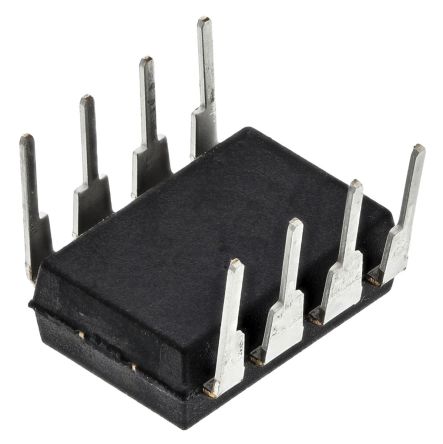

TPS7201QP

TEXAS INSTRUMENTS  TPS7201QP  芯片, 可调稳压器, LDO, 1.2V至9.75V, 250mA, 8-DIP

LDO（低压降）线性稳压器，250mA，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR POS ADJ 250MA 8DIP

立创商城:
TPS7201QP

德州仪器TI:
250-mA, 10-V, low-dropout voltage regulator with power good & enable

欧时:
### LDO（低压降）线性稳压器，250mA，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

贸泽:
低压差稳压器 Micropower PMOS Adjustable

e络盟:
芯片, 可调稳压器, LDO, 1.2V至9.75V, 250mA, 8-DIP

艾睿:
This LDO TPS7201QP linear regulator from Texas Instruments acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±3 %. This device has a maximum power dissipation of 1175 mW. Its typical dropout voltage at current is 0.19@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25 A. This will operate at a minimum voltage of 3 V and a maximum voltage of 10 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.2 to 9.75 V, this is power management at its best. Users like the load regulation of 27mV and line regulation of 23mV. Its maximum power dissipation is 1175 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

安富利:
LDO Regulator Pos 1.2V to 9.75V 0.25A 8-Pin PDIP Tube

Chip1Stop:
Single Channel LDO Single Output LDO, 250mA, Adjustable1.2 to 9.75V, Low Quiescent Current, Power Good PG Output LDO Regulator Pos 1.2V to 9.75V 0.25A 8-Pin PDIP Tube

Verical:
LDO Regulator Pos 1.2V to 9.75V 0.25A 8-Pin PDIP Tube

Newark:
# TEXAS INSTRUMENTS  TPS7201QP  LDO Voltage Regulator, Adjustable, 3V to 10V in, 190mV drop, 1.2V to 9.75V/250mA out, DIP-8

DeviceMart:
IC REG LDO ADJ .25A 8DIP

Win Source:
IC REG LDO ADJ 0.25A 8DIP
