处理器监控电路,带有电源失效 PROCESSOR SUPERVISORY CIRCUITS WITH POWER-FAIL
The TPS370x-xx family of microprocessor supply-voltage supervisors provide circuit initialization and timing supervision, primarily for DSP and processor-based systems.
During power-on, RESET is asserted when the supply voltage VDD becomes higher than 1.1 V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET active as long as VDD remains below the threshold voltage VIT+. When the supply voltage drops below the threshold voltage VIT, the output becomes active low again. No external components are required. All the devices of this family have a fixed-sense threshold voltage VIT set by an internal voltage divider.
The product spectrum is designed for supply voltages of 2.5 V, 3 V, 3.3 V, and 5 V. The circuits are available in either 8-pin MSOP or standard SOIC packages. The TPS370x-xx devices are characterized for operation over a temperature range of 40°C to 85°C.
电源电压DC 2.00V min
输出电流 20 mA
供电电流 0.05 mA
耗散功率 725 mW
静态电流 30.0 µA
阈值电压 2.63 V
输入电容 5.00 pF
复位电压Min 1.2V, 2.57V
复位电压Max 1.3V, 2.7V
工作温度Max 85 ℃
工作温度Min 40 ℃
耗散功率Max 725 mW
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8

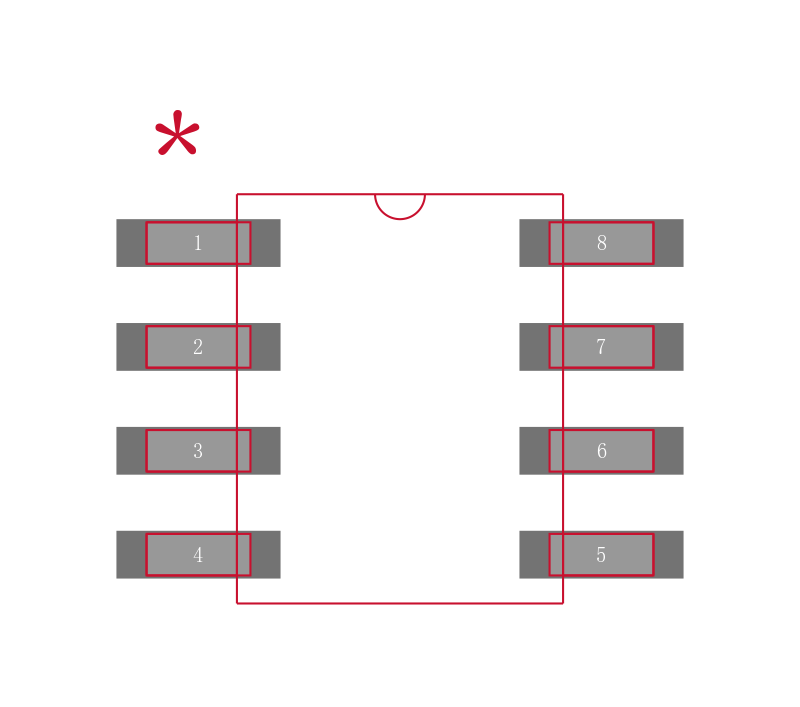

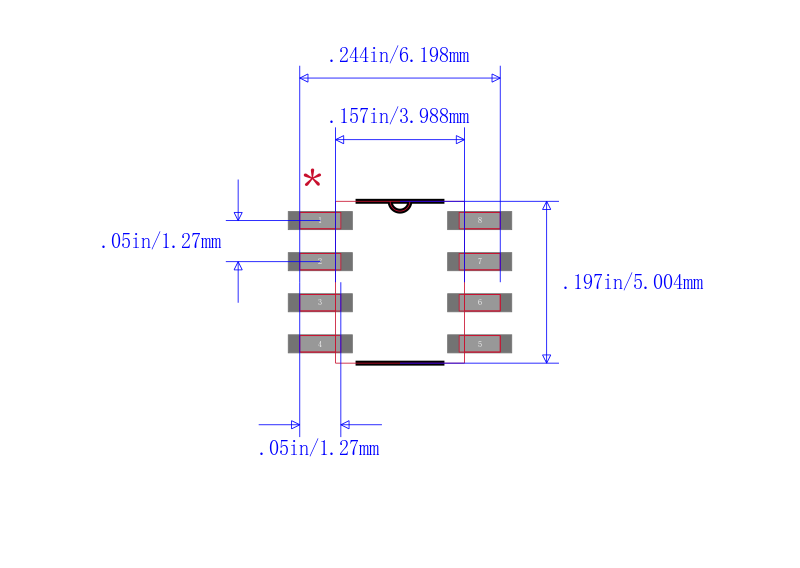

封装 SOIC-8
长度 5 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
