精密微功耗并联型电压基准 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
The TL4050 series of shunt voltage references are versatile easy-to-use references suitable for a wide array of applications. The two-terminal fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures.

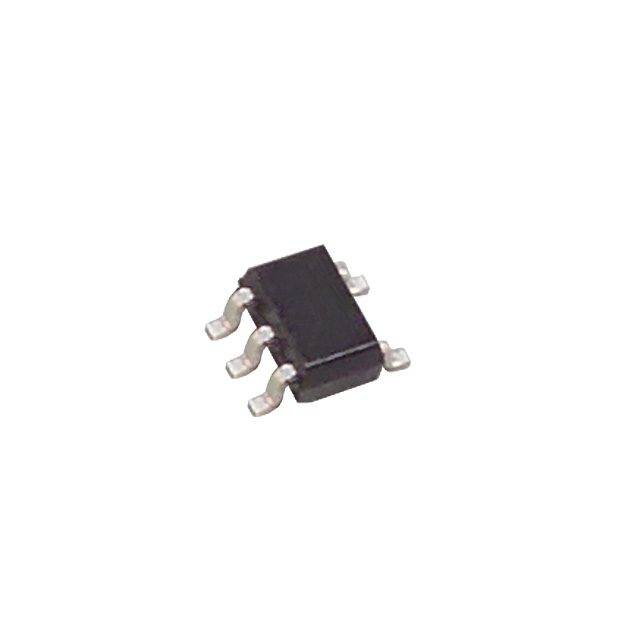

The TL4050 is offered in three initial tolerances, ranging from 0.1% max for the A grade to 0.5% max for the C grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications. Packaged in the space-saving SOT-23-3 and SC-70 packages and requiring a minimum current of 45 µA typ, the TL4050 also is ideal for portable applications.
The TL4050xI is characterized for operation over an ambient temperature range of 40°C to 85°C. The TL4050xQ is characterized for operation over an ambient temperature range of 40°C to 125°C.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL4050A10IDCKR TI 德州仪器 | 当前型号 | 当前型号 |
TL4050A10IDCKT 德州仪器 | 类似代替 | TL4050A10IDCKR和TL4050A10IDCKT的区别 |
TL4050A10IDCKRG4 德州仪器 | 功能相似 | TL4050A10IDCKR和TL4050A10IDCKRG4的区别 |
TL4050A10IDCKTG4 德州仪器 | 功能相似 | TL4050A10IDCKR和TL4050A10IDCKTG4的区别 |
