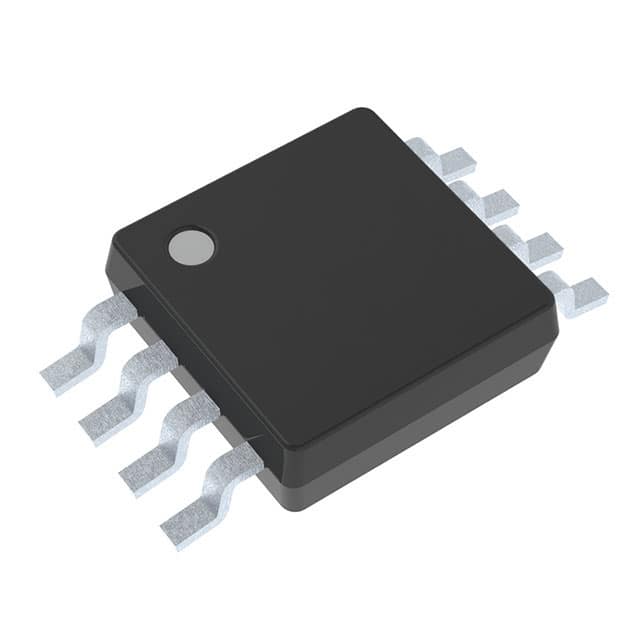

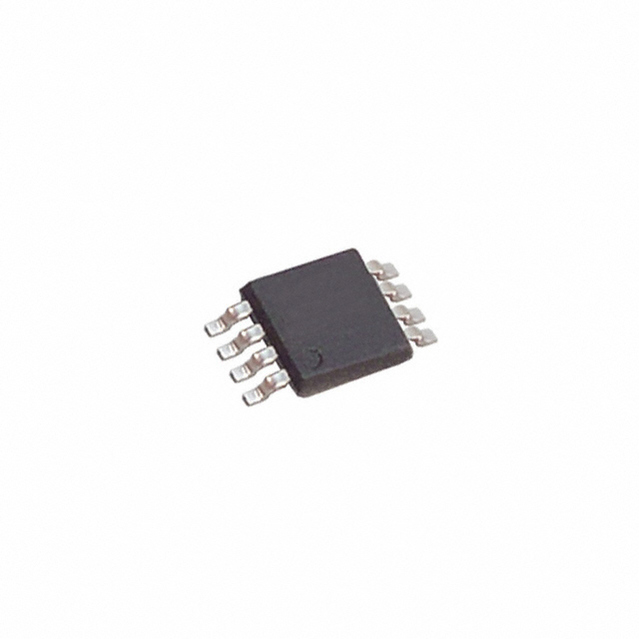

250 - mA的8引脚MSOP封装的LDO稳压器 250-mA LDO REGULATORS WITH 8-PIN MSOP PACKAGING
Keep the energy stable for every system by using this LDO linear regulator by Texas Instruments. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.2@250mA V. This device has a maximum power dissipation of 412 mW. This voltage regulation device"s single output can produce a current up to 0.25 A. By only needing an input voltage of 2.7 V with a maximum of 10 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Users like the load regulation of 1mVTyp and line regulation of 0.005%/VTyp. Its maximum power dissipation is 412 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.33@250mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
输出接口数 1
输出电压 3.3 V
输出电流 250 mA
供电电流 125 µA
耗散功率 0.412 W
静态电流 90.0 µA
输出电容类型 Tantalum
跌落电压 0.2V @250mA
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 3.3 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 412 mW
精度 2 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
长度 3 mm
宽度 3 mm
高度 0.97 mm
封装 VSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS77333DGKR TI 德州仪器 | 当前型号 | 当前型号 |
TPS77333DGK 德州仪器 | 类似代替 | TPS77333DGKR和TPS77333DGK的区别 |
TPS77333DGKRG4 德州仪器 | 类似代替 | TPS77333DGKR和TPS77333DGKRG4的区别 |
TPS77333DGKG4 德州仪器 | 类似代替 | TPS77333DGKR和TPS77333DGKG4的区别 |
