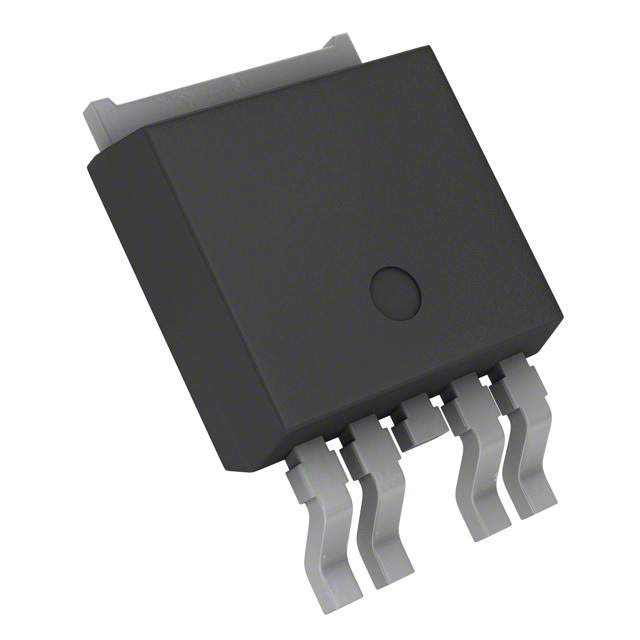

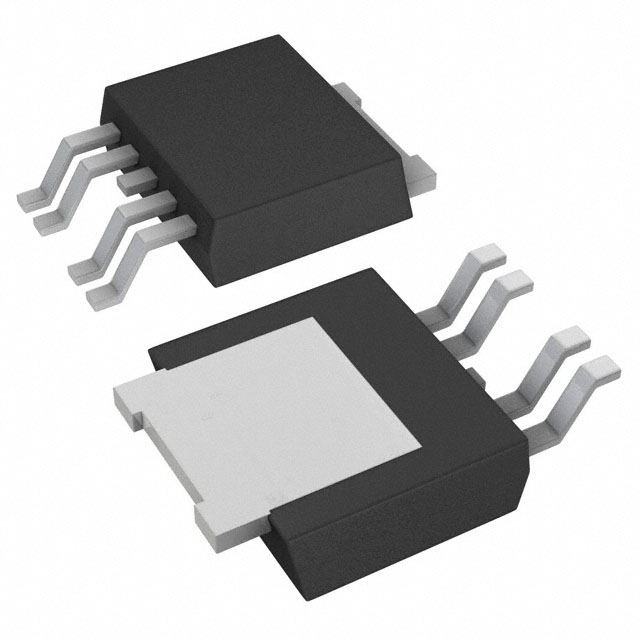

TLE4276DVATMA1 编带
PMIC - 稳压器 - 线性 正 可调式 1 输出 400mA PG-TO252-5-1
得捷:
IC REG LIN POS ADJ 400MA TO252-5
e络盟:
可调节LDO电压调节器, 4.5 V至40 V, 250 mV压降, 2.5 V至20 V/400 mA输出, TO-252-5
艾睿:
Use the LDO TLE4276DVATMA1 linear regulator from Infineon Technologies to maintain a constant output voltage. It has an overall accuracy of ±4 %. Its typical dropout voltage at current is 0.25@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.4 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 4.5 V that does not exceed 40 V. With an adjustable output that has a voltage of 2.5 to 20 V, this is power management at its best. At a load regulation of 35mV and line regulation of 25mV your circuit is capable of maintaining a constant voltage level at your output. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 150 °C. Its polarity is positive. The maximum dropout voltage is 0.5@250mA V.
Chip1Stop:
LDO Regulator Pos 2.5V to 20V 0.4A Automotive 5-Pin4+Tab TO-252
Verical:
LDO Regulator Pos 2.5V to 20V 0.4A Automotive 5-Pin4+Tab TO-252 T/R
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 2.5 V ~ 20 V 400mA P-TO252-5
输出接口数 1
输出电压 2.5V ~ 20V
输出电流 400 mA
针脚数 5
跌落电压 0.25V @250mA
输入电压Max 40 V
输入电压Min 4.5 V
输出电压Max 20 V
输出电压Min 2.5 V
输出电流Max 0.4 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±4 %
输入电压 4.5V ~ 40V
安装方式 Surface Mount
引脚数 5
封装 TO-252-5
封装 TO-252-5
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Automotive general
RoHS标准
含铅标准 Lead Free
