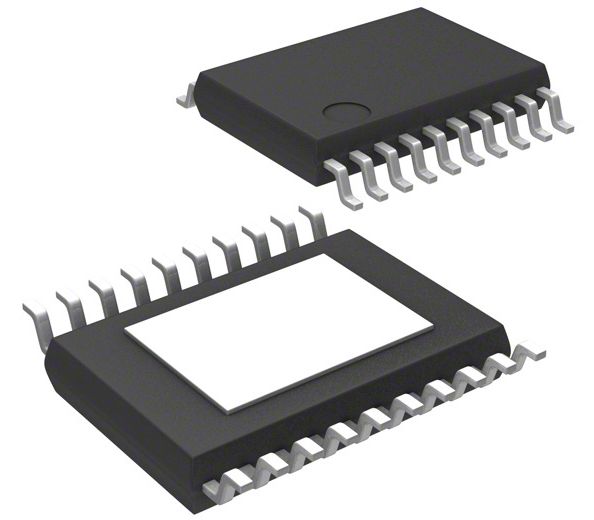

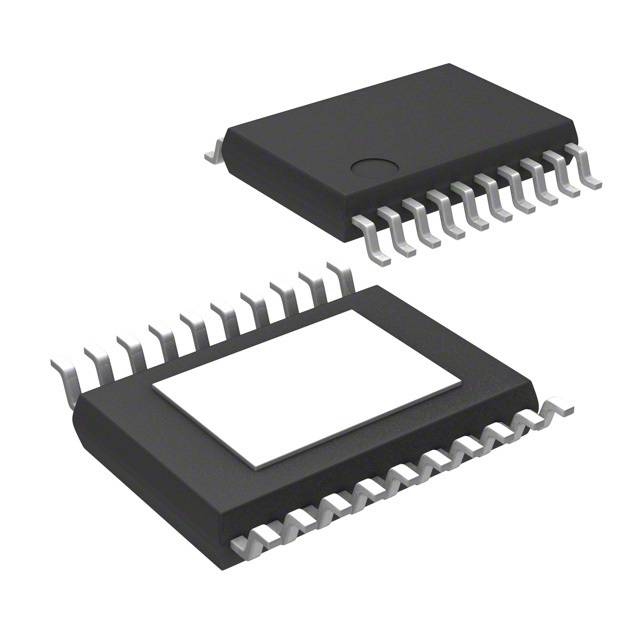

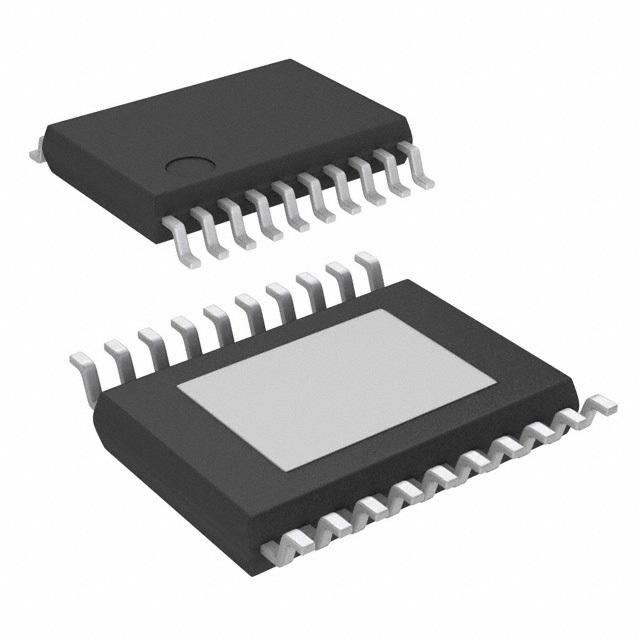

TPS77633PWP

500mA低压差3.3V线性稳压器

Control the voltage level of your circuit with this LDO linear regulator from Texas Instruments. This device has a maximum power dissipation of 7200 mW. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.169@500mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. By only needing an input voltage of 2.7 V with a maximum of 10 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 3mVTyp and line regulation of 0.01%/VTyp. Its maximum power dissipation is 7200 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.287@500mA V.
