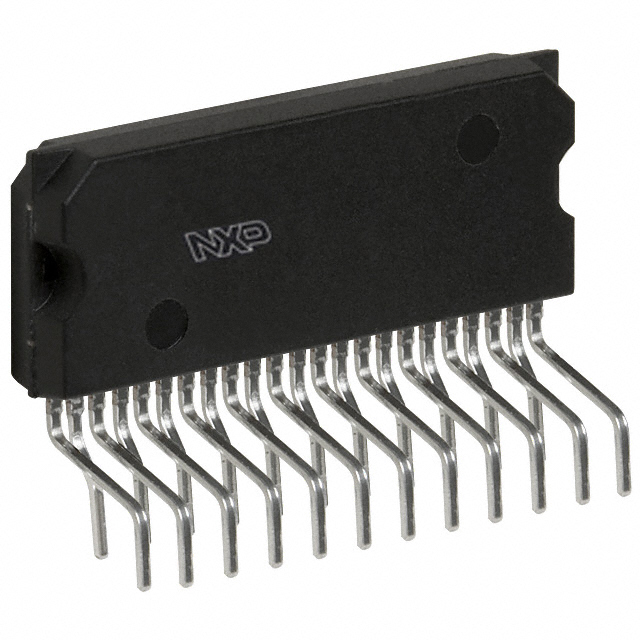

TDA8567Q - 4 x 25 W BTL四通道汽车收音机功率放大器
Driving and low impedance, inductive speaker load has never been easier when you implement this class D amplifier from Semiconductors to amplify and buffer audio signals. This audio amplifier can handle a current up to 10000 mA. Its maximum power dissipation is 60000 mW. It has a maximum load resistance of 4 Ohm. It has a single input signal and a differential output signal. It has a 4-channel stereo output. This audio amplifier has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device uses a single power supply.
通道数 4
耗散功率 60000 mW
输出功率 35 W
增益 26 dB
输出电流Max 10000 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 60000 mW
电源电压 6V ~ 18V
电源电压Max 18 V
电源电压Min 6 V
安装方式 Through Hole
引脚数 23
封装 SIP-23
宽度 4.6 mm
高度 12.2 mm
封装 SIP-23
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
