TEXAS INSTRUMENTS TPS7A6550QKVURQ1 固定电压稳压器, LDO, 5.3V至40V, 300mV压差, 5V输出, 300mA输出, TO-252AA-3
The is a 5V fixed output low-dropout LDO Linear Regulator designed for low power consumption and quiescent current less than 25µA in light-load applications. This device feature integrated overcurrent protection and a design to achieve stable operation even with low-ESR ceramic output capacitors. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold crank conditions.
- .
- ±2% Tolerance
- .
- Short-circuit and overcurrent protection
- .
- Thermal shutdown
- .
- Low input-voltage tracking
- .
- Green product and no Sb/Br
输出接口数 1
输出电压 5 V
输出电流 300 mA
供电电流 40 µA
针脚数 3
耗散功率 4.27 W
静态电流 0.025 mA
输出电容类型 Ceramic
跌落电压 300 mV
调节输出数 1
输入电压Max 40 V
输入电压Min 5.3 V
输出电压Min 5 V
输出电流Max 0.3 A
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 4270 mW
精度 ±2 %
输入电压 5.3V ~ 40V
安装方式 Surface Mount
引脚数 3

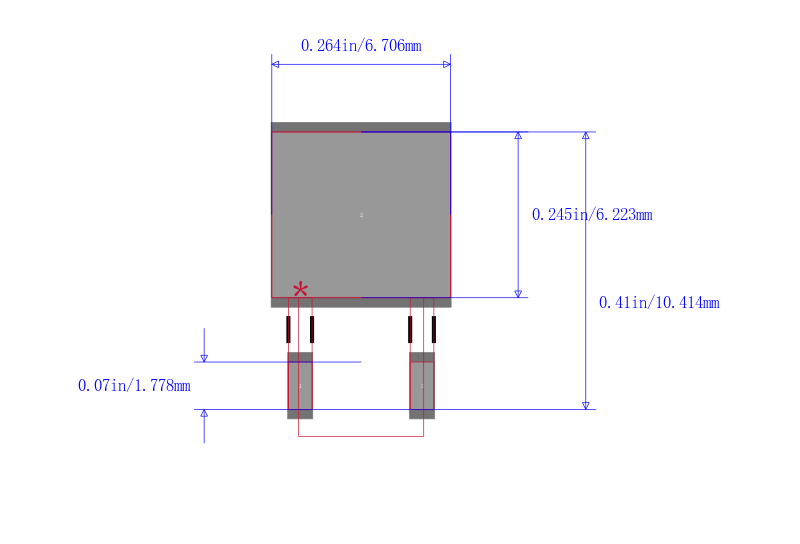

封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS7A6550QKVURQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS7A6550QKVUQ1 德州仪器 | 类似代替 | TPS7A6550QKVURQ1和TPS7A6550QKVUQ1的区别 |
