TPS40200QDRQ1

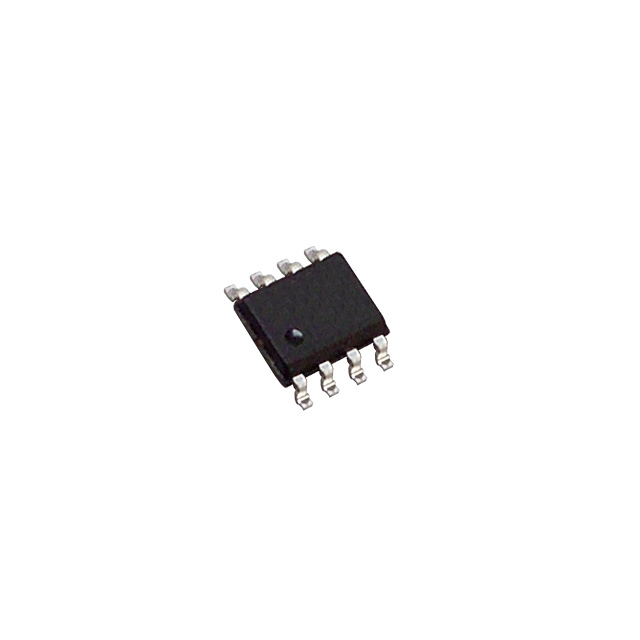

TEXAS INSTRUMENTS  TPS40200QDRQ1  直流/直流控制器, 电压模式, 4.5V至52V, 1路输出, 降压, 500kHz, SOIC-8

The is a flexible Non-synchronous Controller with a built-in 200mA driver for P-channel FETs. The circuit operates with inputs up to 52V, with a power-saving feature that turns off driver current once the external FET has been turned on fully. This feature extends the flexibility of the device, allowing it to operate with an input voltage up to 52V without dissipating excessive power. The circuit operates with voltage-mode feedback and has feed-forward input-voltage compensation that responds instantly to input voltage change. The integral 700mV reference is trimmed to 2%, providing the means to accurately control low voltages. Clock frequency, soft start and overcurrent limit are each easily programmed by a single, external component. The device has undervoltage lockout UVLO and can be easily synchronized to other controllers or a system clock to satisfy sequencing and/or noise-reduction requirements.

.

200mA Internal P-channel FET driver

.

Voltage feed-forward compensation

.

Undervoltage lockout UVLO

.

Programmable short-circuit protection

.

Hiccup overcurrent fault recovery

.

Programmable closed-loop soft start

.

700mV 1% Reference voltage

.

External synchronization

.

Green product and no Sb/Br

Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
