TDA7350A

BRIDGE 22W立体声放大器，用于汽车收音机 22W BRIDGE-STEREO AMPLIFIER FOR CAR RADIO

Description

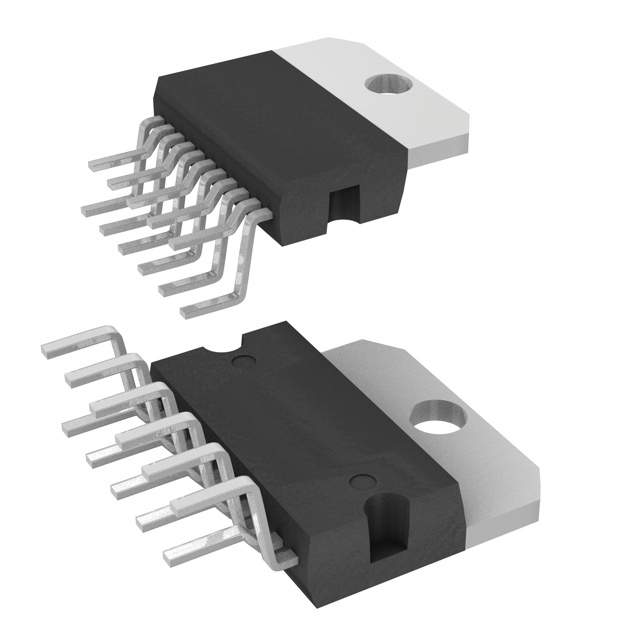

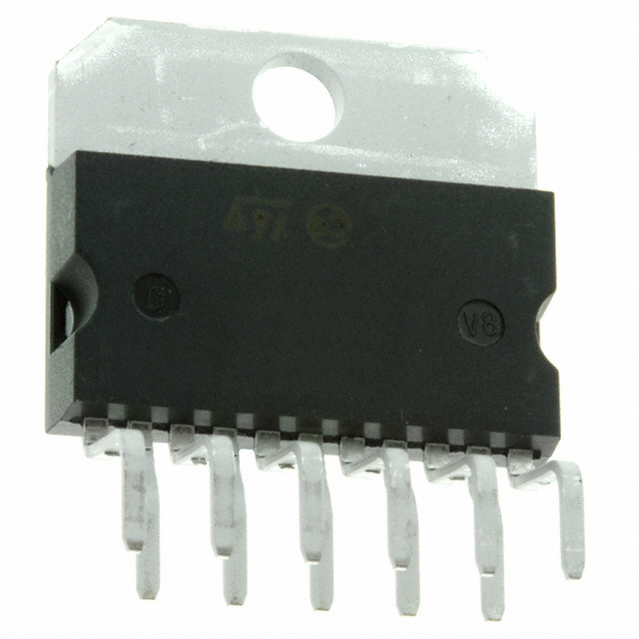

The is a new technology class AB Audio Power Amplifier in the Multiwatt® package designed for car radio applications.

Thanks to the fully complementary PNP/NPN output configuration the high power performance of the TDA7350A is obtained without bootstrap capacitors.

A delayed turn-on mute circuit eliminates audible on/off noise, and a novel short circuit protection system prevents spurious intervention with highly inductive loads.

General Features

■ VERY FEW EXTERNAL COMPONENTS

■ NO BOUCHEROT CELLS

■ NO BOOSTRAP CAPACITORS

■ HIGH OUTPUT POWER

■ NO SWITCH ON/OFF NOISE

■ VERY LOW STAND-BY CURRENT

■ FIXED GAIN 30dB STEREO

■ PROGRAMMABLE TURN-ON DELAY

PROTECTIONS

■ OUTPUT AC-DC SHORT CIRCUIT TO GROUND AND TO SUPPLY VOLTAGE

■ VERY INDUCTIVE LOADS

■ LOUDSPEAKER PROTECTION

■ OVERRATING CHIP TEMPERATURE

■ LOAD DUMP VOLTAGE

■ FORTUITOUS OPEN GROUND

■ ESD
