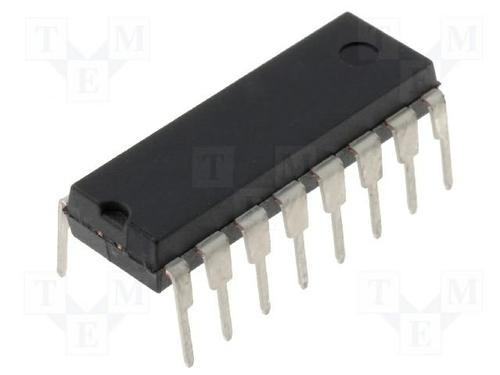

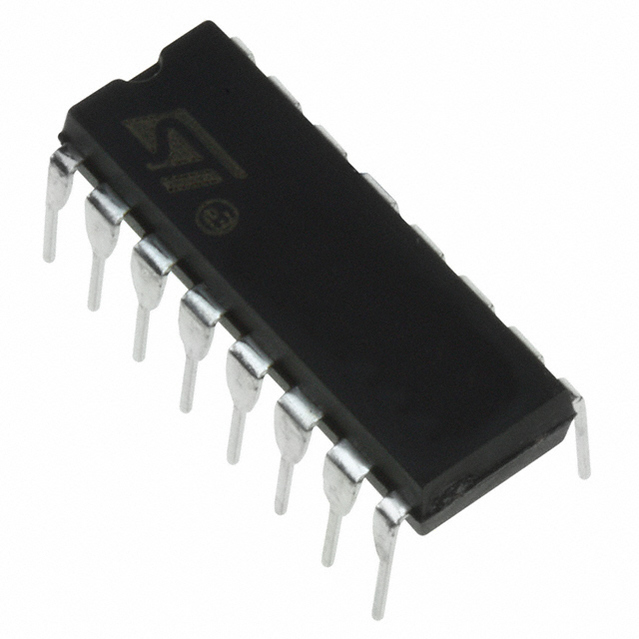

STMICROELECTRONICS TEA2025B 音频功率放大器, AB, 2通道, 4.7 W, 3V 至 12V, DIP, 16 引脚
Ideal for sounds engineering this class D amplifier from STMicroelectronics is an important device. This audio amplifier can handle a current up to 1500 mA. It has a single input signal and a differential and single output signal. It has a maximum load resistance of 32 Ohm. It has a 1-channel mono|2-channel stereo output. This audio amplifier has a maximum operating temperature of 150 °C. Its typical PSRR is 46 dB. This device uses a single power supply.
电源电压DC 15.0 V
额定功率 1 W
供电电流 1.50 A
电路数 1
通道数 2
针脚数 16
静态电流 35.0 mA
输出功率 4.7 W
增益 51 dB
输出电流Max 1500 mA
工作温度Max 150 ℃
工作温度Min 0 ℃
电源电压 3V ~ 12V
电源电压Max 12 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
宽度 7.1 mm
封装 DIP-16
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TEA2025B ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TDA7268 意法半导体 | 类似代替 | TEA2025B和TDA7268的区别 |
TDA2822 意法半导体 | 类似代替 | TEA2025B和TDA2822的区别 |
TEA2025D 意法半导体 | 功能相似 | TEA2025B和TEA2025D的区别 |
