正 Vin=45V Vout=5V 200mA 65dB@100Hz
Description:
The TLE4699 is a monolithic integrated low drop out fixed output voltage regulator for loads up to 200 mA. An input voltage of up to 45 V is regulated to an output voltage of 5 V. The integrated reset as well as several protection circuits, combined with a wide operating temperature range offered by the TLE4699 make it suitable for supplying microprocessor systems in automotive environments. The early warning function supervises the voltage at pin SI. Modifying the reset threshold is possible by an optional resistor divider. The TLE4699 is available in a PG-DSO-14 package which makes it pin-compatible to the TLE4299 as well as in a small thermally enhanced PG-SSOP-14 EP exposed pad package.
Summary of Features:
Benefits:
输出接口数 1
输出电压 5 V
输出电流 200 mA
跌落电压 0.09V @50mA,0.16V @150mA
输入电压Max 45 V
输入电压Min 3.3 V
输出电流Max 0.2 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤45 V
安装方式 Surface Mount
引脚数 14

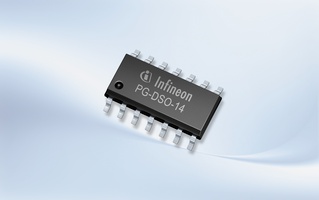

封装 PG-DSO-14
封装 PG-DSO-14
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Automotive General
RoHS标准 RoHS Compliant
含铅标准 Lead Free
