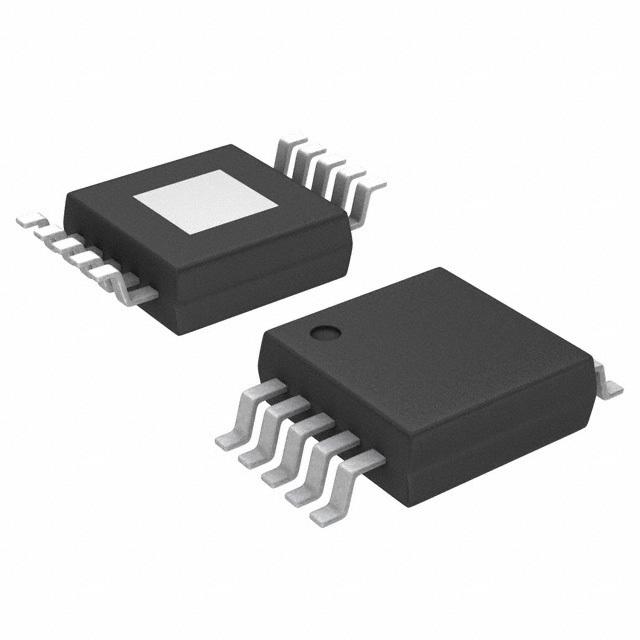

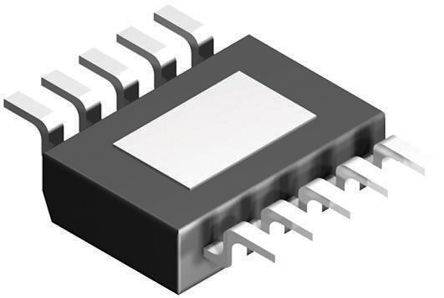

TPS40211DGQ

TEXAS INSTRUMENTS  TPS40211DGQ.  芯片, 升压控制器, 电流模式

LED 照明 - 照明，直流/直流 LED 驱动器，Texas Instruments

得捷:
IC REG CTRLR MULT TOP 10MSOP

欧时:
### LED 照明 - 照明，直流/直流 LED 驱动器，Texas Instruments### LED 驱动器，Texas Instruments

立创商城:
升降压型 升压型 4.5V~52V 1MHz

德州仪器TI:
4.5-V to 52-V wide input range current mode boost controller with 260-mV reference voltage

e络盟:
直流/直流控制器, 电流模式, 4.5V至52V, 1路输出, 升压, 1MHz, MSOP-10

艾睿:
Manage output current into an external circuit using this TPS40211DGQ current controller from Texas Instruments. With an output that has a voltage of 5 to 250 V, this is power management at its best. Its single PWM output produces a current of 400 mA. This current mode controller supports boost|flyback topology. This part offers a switching frequency of 35 to 1000 kHz in order to work properly. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 125 °C. This current mode controller&s;s maximum duty cycle is 95 %. This device has a minimum operating supply voltage of 4.5 V and a maximum of 52 V.

安富利:
Current Mode PWM Controller 5V to 250V 400mA 10-Pin HTSSOP EP Tube

Chip1Stop:
Current Mode PWM Controller 5V to 250V 400mA 35kHz to 1000kHz 10-Pin HVSSOP EP Tube

Verical:
Current Mode PWM Controller 5V to 250V 400mA 10-Pin HVSSOP EP Tube

Newark:
# TEXAS INSTRUMENTS  TPS40211DGQ  DC/DC Controller, Current Mode, 4.5V to 52V, 1 Output, Boost, 1MHz, MSOP-10

DeviceMart:
IC REG CTRLR BST FLYBK CM 10MSOP

Win Source:
Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-MSOP
