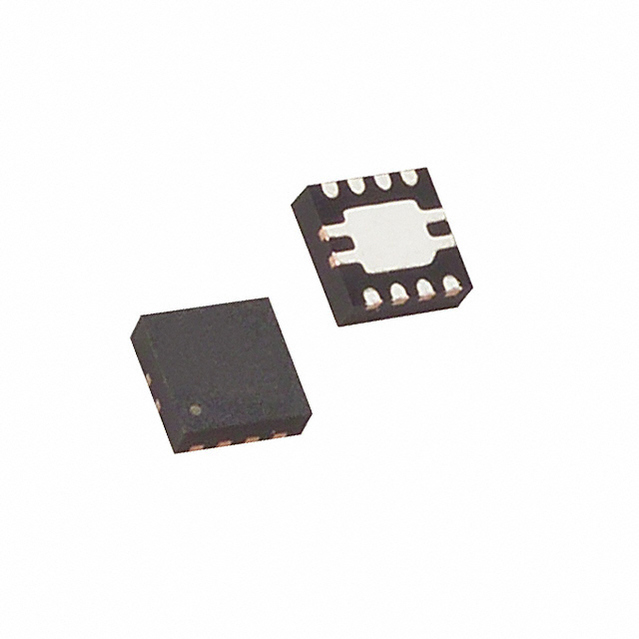

双通道,电流限制,配电开关 TWO CHANNEL, CURRENT-LIMITED, POWER-DISTRIBUTION SWITCHES
电源开关/驱动器 1:2 N 通道 1A 8-SON(3x3)
得捷:
IC POWER-DIST SWITCH 2CH 8SON
立创商城:
TPS2066ADRBT
德州仪器TI:
2-ch, 1A loading, 1.6A ILIMIT, 2.7-5.5V, 70mΩ USB power switch, active-high
贸泽:
电源开关 IC - 配电 Two Ch Crnt-Ltd Pwr-Dist Sw
艾睿:
Use this high side switch and usb power distribution switch TPS2066ADRBT USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. Using the part will provide the power your application needs by requiring a voltage only of 2.7 V and not exceeding a voltage of 5.5 V. Its current limit is 1.6 A. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This USB powered network switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
USB Power SW Hi Side/DIST Dual 5.5V 1.6A 8-Pin VSON EP T/R
Chip1Stop:
USB Power Switch Dual 5.5V 1.6A 8-Pin VSON EP T/R
Verical:
USB Power SW Hi Side/DIST Dual 5.5V 1.6A 8-Pin VSON EP T/R
输出接口数 2
输出电流 1 A
耗散功率 1600 mW
上升时间 600 µs
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1600 mW
电源电压Max 5.5 V
电源电压Min 4.5 V
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 VSON EP-8
封装 VSON EP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2066ADRBT TI 德州仪器 | 当前型号 | 当前型号 |
TPS2066ADRBR 德州仪器 | 完全替代 | TPS2066ADRBT和TPS2066ADRBR的区别 |
TPS2066ADRBRG4 德州仪器 | 完全替代 | TPS2066ADRBT和TPS2066ADRBRG4的区别 |
TPS2066ADRBTG4 德州仪器 | 完全替代 | TPS2066ADRBT和TPS2066ADRBTG4的区别 |
