TDA7564BH

4× 50W多功能四功率放大器，内置的诊断功能 4 x 50W multifunction quad power amplifier with built-in diagnostics features

Description

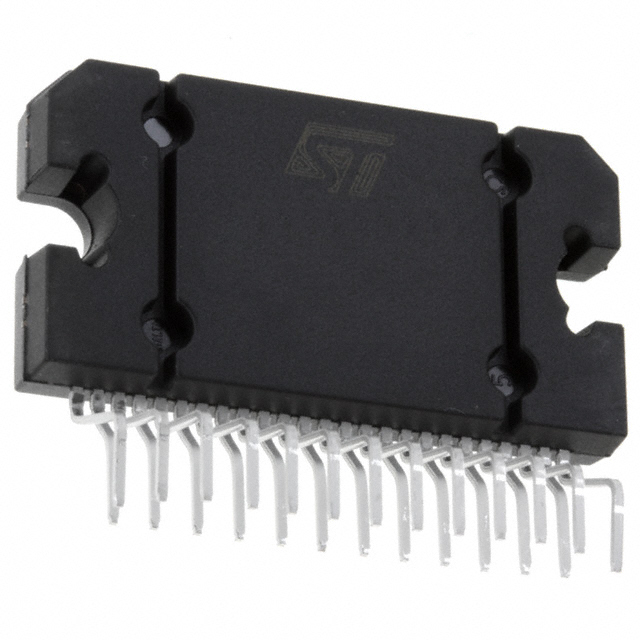

The TDA7564B is a new BCD technology QUAD BRIDGE type of car radio amplifier in Flexiwatt25/PowerSO36 package specially intended for car radio applications. Thanks to the DMOS output stage the TDA7564B has a very low distortion allowing a clear powerful sound. Among the features, its superior efficiency performance coming from the internal exclusive structure, makes it the most suitable device to simplify the thermal management in high power sets.

Features

■ Multipower BCD technology

■ MOSFET output power stage

■ DMOS power output

■ New Hi-efficiency class SB

■ High output power capability 4x28W/4Ω@ 14.4V, 1KHz, 10% THD, 4x50W max, power

■ Max. output power 4x72W/2Ω

■ Full I2C bus driving:

–St-by

– Independent front/rear soft play/mute

– Selectable gain for low noise line output function

– High efficiency enable/disable

–I2C bus digital diagnostics including AC and DC load detection

■ Full fault protection

■ DC offset detection

■ Four independent short circuit protection

■ Clipping detector 2%/10%

■ Linear thermal shutdownwith multiple thermal warning

■ ESD protection
