TDA7495

带DC音量控制的5W + 5W放大器 5W+5W AMPLIFIER WITH DC VOLUME CONTROL

DESCRIPTION

The is a stereo 11+11W class AB power amplifier assembled in the @ Multiwatt 15 package, specially designed for high quality sound, TV applications.

Features of the TDA7495 include linear volume control, Stand-by and mute functions.

11+11W OUTPUT POWER

   RL = 8Ω @THD = 10% VCC = 28V

ST-BY AND MUTE FUNCTIONS

LOW TURN-ON TURN-OFF POP NOISE

LINEAR VOLUME CONTROL DC COUPLED WITH POWER OP. AMP.

NO BOUCHEROT CELL

NO ST-BY RC INPUT NETWORK

SINGLE SUPPLY RANGING UP TO 35V

SHORT CIRCUIT PROTECTION

THERMAL OVERLOAD PROTECTION

INTERNALLY FIXED GAIN

SOFT CLIPPING

VARIABLE OUTPUT AFTER VOLUME CONTROL CIRCUIT

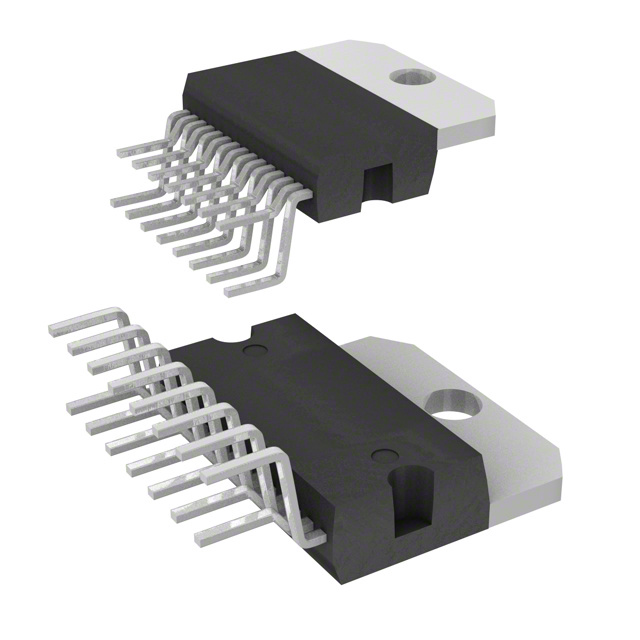

MULTIWATT 15 PACKAGE
