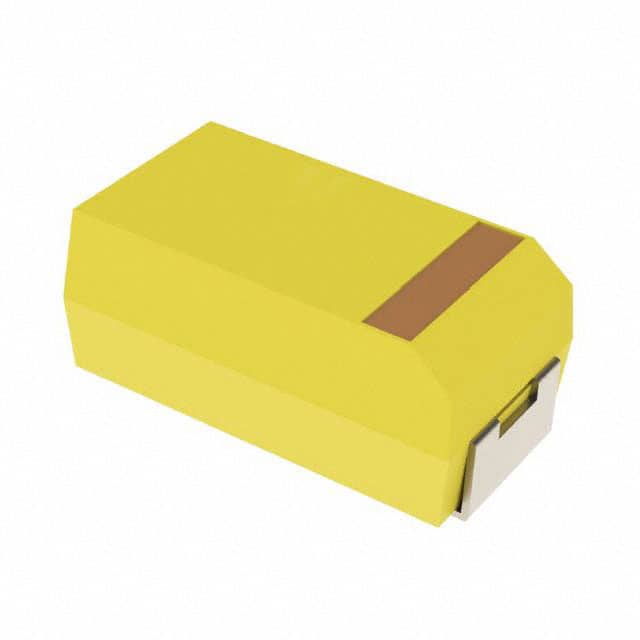

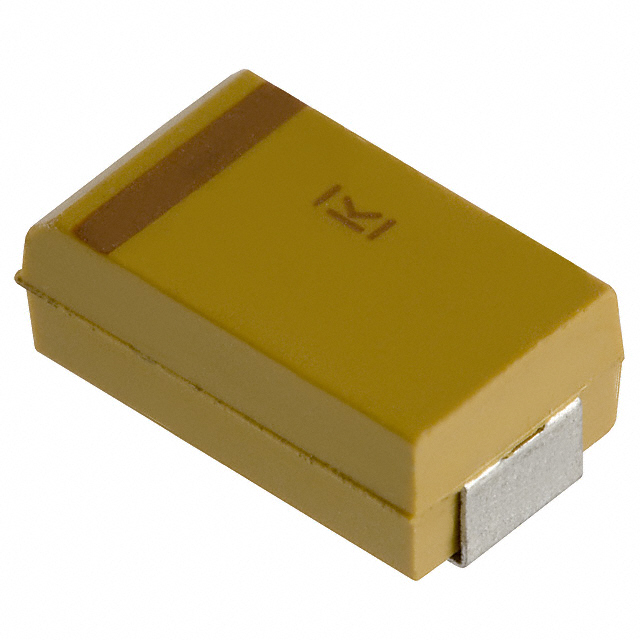

KEMET T491X107M020AT 钽电容, 100uF 20%容差 20V
钽器
得捷:
CAP TANT 100UF 20% 20V 2917
立创商城:
100uF ±20% 20V
e络盟:
表面贴装钽电容, 100 µF, 20 V, 2917 [7343 公制], T491系列, ± 20%, -55 °C
艾睿:
A high capacitance per volume with a low footprint design is what you will get by using this T491X107M020AT tantalum solid capacitor from Kemet. It can withstand a voltage of 20 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 20 μA. It has a tolerance of 20%. This product is 7.3 mm long, 4 mm tall and 4.3 mm deep. Its capacitance value is 100uF.
安富利:
Cap Tant Solid 100uF 20V X CASE 20% 7.3 X 4.3 X 4mm SMD 7343-43 0.5 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 100uF 20V X CASE 20% 7.3 X 4.3 X 4mm SMD 7343-43 0.5 Ohm 125 C T/R
Verical:
Cap Tant Solid 100uF 20V X CASE 20% 7.3 X 4.3 X 4mm Inward L SMD 7343-43 0.5 Ohm 125C Automotive T/R
Newark:
# KEMET T491X107M020AT Surface Mount Tantalum Capacitor, 100 µF, 20 V, T491 Series, ± 20%, 2917 [7343 Metric]
Win Source:
CAP TANT 100UF 20V 20% 2917
额定电压DC 20.0 V
电容 100 µF
等效串联电阻ESR 500 mΩ
容差 ±20 %
产品系列 T491
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 20 V
安装方式 Surface Mount
引脚数 2
封装公制 7343-43
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 4 mm
封装公制 7343-43
封装 7343
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000h @85℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T491X107M020AT KEMET Corporation 基美 | 当前型号 | 当前型号 |
T491X107M020AS 基美 | 完全替代 | T491X107M020AT和T491X107M020AS的区别 |
T491X107K020AT 基美 | 类似代替 | T491X107M020AT和T491X107K020AT的区别 |
T491X107M016AT 基美 | 类似代替 | T491X107M020AT和T491X107M016AT的区别 |
