3A输出电流,700kHz同步降压转换器
降压 开关稳压器 IC 正 可调式 0.808V 1 输出 3A 8-PowerSOIC（0.154"，3.90mm 宽）
得捷:
IC REG BUCK ADJUSTABLE 3A 8SOPWR
立创商城:
降压型 Vin=2.95V~6V Vout=808mV~4.5V 3A
德州仪器TI:
2.95V to 6V Input, 3A Synchronous Step-Down Converter
艾睿:
Adjust the voltage level of your devices with this step down TPS5432DDAR DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 3 A. Use this part at voltages between 2.95 V and 6 V. With an adjustable output that has a voltage of 0.808 to 4.5 V, this is power management at its best. Its switching regulator has a frequency of 520 to 880 kHz. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
Conv DC-DC Single Step Down 2.95V to 6V 8-Pin HSOP EP T/R
Chip1Stop:
Conv DC-DC Single Step Down 2.95V to 6V 8-Pin HSOP EP T/R
力源芯城:
3A输出电流,700kHz同步降压转换器
Win Source:
Buck Switching Regulator IC Positive Adjustable 0.808V 1 Output 3A 8-PowerSOIC 0.154", 3.90mm Width
DeviceMart:
IC REG BUCK SYNC ADJ 3A 8SO
输出接口数 1
输出电压 0.808V ~ 4.5V
输出电流 3 A
静态电流 360 µA
调节输出数 1
开关频率 700 kHz
拓扑结构 Buck
输入电压Max 6 V
输入电压Min 2.95 V
输出电压Max 4.5 V
输出电压Min 0.808 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.95V ~ 6V
安装方式 Surface Mount
引脚数 8

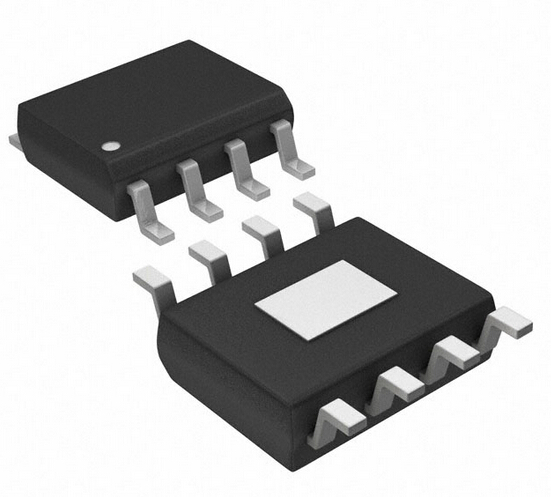

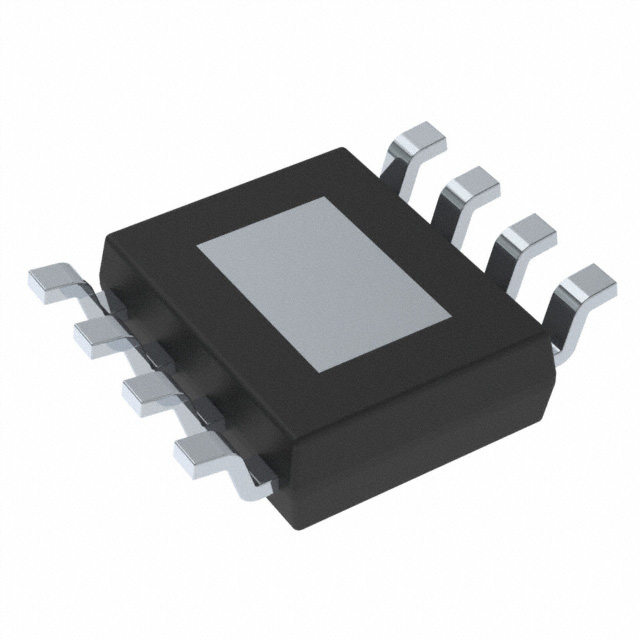

封装 HSOP-8
封装 HSOP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS5432DDAR TI 德州仪器 | 当前型号 | 当前型号 |
TPS5432DDA 德州仪器 | 类似代替 | TPS5432DDAR和TPS5432DDA的区别 |
