TPS77633PWPRG4

快速瞬态响应500毫安低压差稳压器 FAST-TRANSIENT-RESPONSE 500mA LOW-DROPOUT VOLTAGE REGULATORS

DESCRIPON

The TPS775xx and TPS776xx devices are designed to have a fast transient response and be stable with a 10µF low ESR capacitor. This combination provides high performance at a reasonable cost.

FEATURES

• Open Drain Power-On Reset with 200ms Delay TPS775xx

• Open Drain Power Good TPS776xx

• 500mA Low-Dropout Voltage Regulator

• Available in Fixed Output and Adjustable Versions

• Dropout Voltage to 169mV Typ at 500mA TPS77x33

• Ultralow 85µA Typical Quiescent Current

• Fast Transient Response

• 2% Tolerance Over Specified Conditions for Fixed-Output Versions

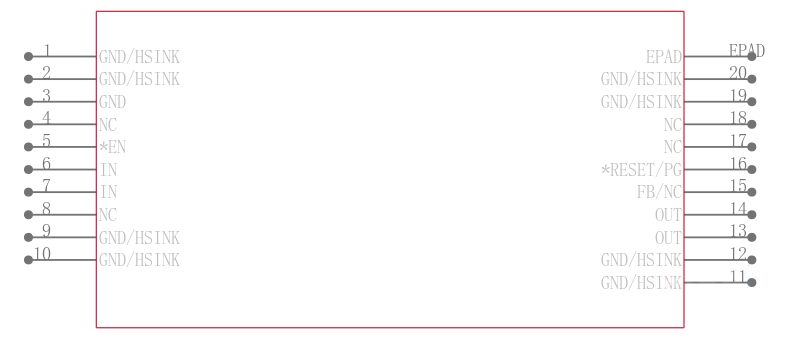

• 8-Pin SOIC and 20-Pin TSSOP PowerPAD™ PWP Packages

• Thermal Shutdown Protection

APPLICATIONS

• FPGA Power

• DSP Core and I/O Voltages
