LDO(低压降)线性电压调节器,400mA,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,400mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1.5V 400MA SOT23-5
立创商城:
TPS73615DBVT
德州仪器TI:
400-mA, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable
e络盟:
固定LDO稳压器, 1.7V至5.5V, 75mV压差, 1.5V输出, 400mA输出, SOT-23-5
艾睿:
This LDO TPS73615DBVT linear regulator from Texas Instruments acts like a variable resistor to maintain a steady voltage level. Its typical dropout voltage at current is 0.075@400mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.4 A. This will operate at a minimum voltage of 1.7 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.5V 0.4A 5-Pin SOT-23 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 400mA, Fixed1.5V, Cap free, Low Noise, Reverse Current Protection LDO Regulator Pos 1.5V 0.4A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.5V 0.4A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS73615DBVT Fixed LDO Voltage Regulator, 1.7V to 5.5V, 75mV Dropout, 1.5Vout, 400mAout, SOT-23-5
Win Source:
IC REG LDO 1.5V 0.4A SOT23-5
DeviceMart:
IC REG LDO 1.5V .4A SOT23-5
输出接口数 1
输入电压DC 5.50V max
输出电压 1.5 V
输出电流 400 mA
供电电流 550µA ~ 1mA
针脚数 5
耗散功率 560 W
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 75 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电压Min 1.5 V
输出电流Max 400 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 1 %
输入电压 1.7V ~ 5.5V
安装方式 Surface Mount
引脚数 5

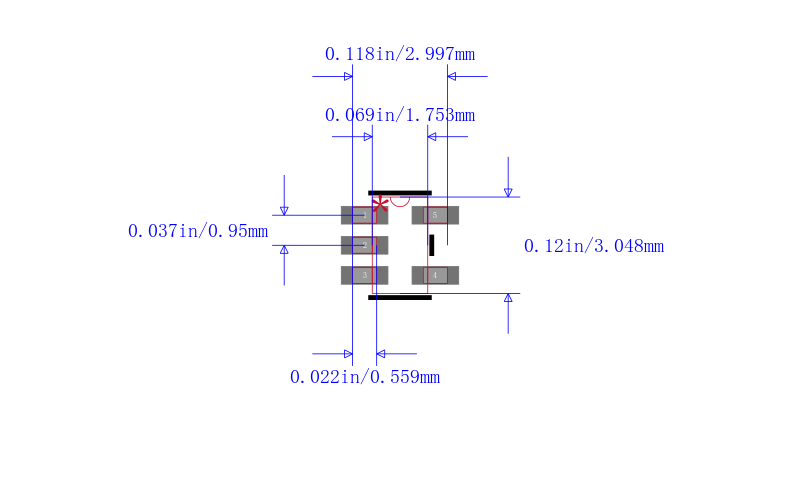

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73615DBVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS73615DBVR 德州仪器 | 类似代替 | TPS73615DBVT和TPS73615DBVR的区别 |
TPS73615DBVTG4 德州仪器 | 类似代替 | TPS73615DBVT和TPS73615DBVTG4的区别 |
TPS73615DBVRG4 德州仪器 | 类似代替 | TPS73615DBVT和TPS73615DBVRG4的区别 |
