TPS2068DG4

USB Power Switch Single 5.5V 2.1A 8Pin SOIC Tube

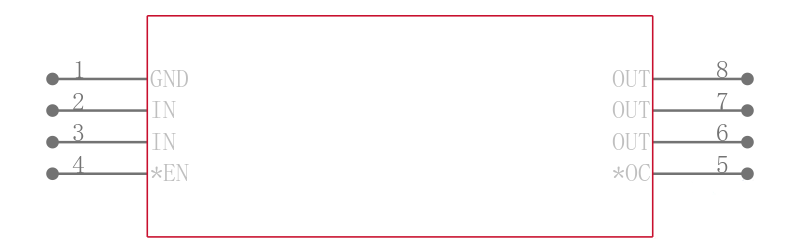

DESCRIPON

The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70-mΩ N-channel MOSFET power switches for power-distribution systems that require single or dual power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.

FEATURES

• 70-mΩ High-Side MOSFET

• 1.5-A Continuous Current

• Thermal and Short-Circuit Protection

• Accurate Current Limit 1.6 A min, 2.6 A max

• Operating Range: 2.7 V to 5.5 V

• 0.6-ms Typical Rise Time

• Undervoltage Lockout

• Deglitched Fault Report OC

• No OC Glitch During Power Up

• 1-μA Maximum Standby Supply Current

• Reverse Current Blocking

• TPS2060/64 Temperature Range: 0°C to 70°C

• TPS2068/69 DGN Package Temperature Range: –40°C to 85°C

• TPS2068 D Package Temperature Range: 0°C to 70°C

• UL Listed – File No. E169910

• TPS2068/69: CB Certified

APPLICATIONS

• Heavy Capacitive Loads

• Short-Circuit Protections
