PSRR快速RF低压差稳压器
Don"t let unpredictable voltage levels ruin your circuit! Use this LDO linear regulator from Texas Instruments to control your voltage levels! Its typical dropout voltage at current is 0.155@250mA V. This device has a maximum power dissipation of 2600 mW. It has an overall accuracy of ±3 %. This voltage regulation device"s single output can produce a current up to 0.25 A. It only needs a voltage of at least 2.7 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. At a load regulation of 10mVTyp and line regulation of 0.05%/VTyp a constant current can be produced at the output of your circuit. Its maximum power dissipation is 2600 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.21@250mA V. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输入电压DC 5.50V max
输出电压 3 V
输出电流 250 mA
耗散功率 2.6 W
静态电流 0.17 mA
输出电容类型 Ceramic
跌落电压 0.155V @250mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 0.25 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2600 mW
精度 ±3 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 8

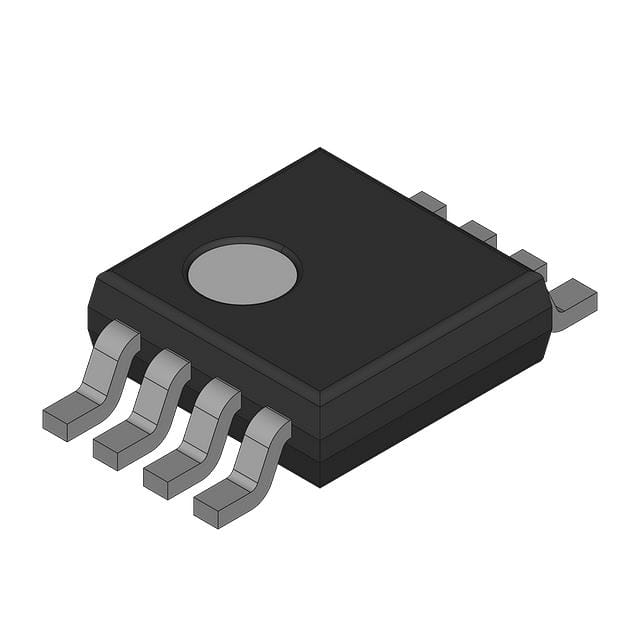

封装 PowerPad-MSOP-8
封装 PowerPad-MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79430DGNT TI 德州仪器 | 当前型号 | 当前型号 |
TPS79430DGNR 德州仪器 | 完全替代 | TPS79430DGNT和TPS79430DGNR的区别 |
TPS79430DGNTG4 德州仪器 | 类似代替 | TPS79430DGNT和TPS79430DGNTG4的区别 |
TPS79430DGNRG4 德州仪器 | 类似代替 | TPS79430DGNT和TPS79430DGNRG4的区别 |
