TEXAS INSTRUMENTS TPS54328DDA 直流-直流开关降压逐步递减稳压器, 可调, 4.5V-18V输入, 760mV-7V输出, 3A输出, HSOP-8
降压 开关稳压器 IC 正 可调式 0.76V 1 输出 3A 8-PowerSOIC(0.154",3.90mm 宽)
得捷:
IC REG BUCK ADJUSTABLE 3A 8SOPWR
立创商城:
降压型 Vin=4.5V~18V Vout=760mV~7V 3A
德州仪器TI:
4.5V to 18V Input, 3-A Synchronous Step-Down Converter with Eco-mode™
贸泽:
开关稳压器 4.5V-18Vin,3A Synch Step-Down SWIFT
e络盟:
TEXAS INSTRUMENTS TPS54328DDA 直流-直流开关降压逐步递减稳压器, 可调, 4.5V-18V输入, 760mV-7V输出, 3A输出, HSOP-8
艾睿:
Adjust the voltage level of your devices with this step down TPS54328DDA DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 3 A. By only needing an input voltage of 4.5 V with a maximum of 18 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 0.76 to 7 V, this is power management at its best. By operating at a load regulation of 100mV and line regulation of 25mV you can provide a constant voltage at your output. This part offers a switching frequency of 700Typ kHz in order to work properly. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has an operating temperature range of -40 °C to 85 °C.
安富利:
Conv DC-DC Single Step Down 4.5V to 18V 8-Pin HSOP EP Tube
Chip1Stop:
Conv DC-DC 4.5V to 18V Step Down Single-Out 0.76V to 7V 3A 8-Pin HSOP EP Tube
Verical:
Conv DC-DC 4.5V to 18V Synchronous Step Down Single-Out 0.76V to 7V 3A 8-Pin HSOIC EP Tube
Newark:
# TEXAS INSTRUMENTS TPS54328DDA DC-DC Switching Buck Step Down Regulator, Adjustable, 4.5V-18Vin, 760mV-7Vout, 3Aout, HSOP-8
输出接口数 1
输出电压 0.76V ~ 7V
输出电流 3 A
针脚数 8
静态电流 800 µA
调节输出数 1
开关频率 700 kHz
拓扑结构 Buck
输入电压Max 18 V
输入电压Min 4.5 V
输出电压Max 7 V
输出电压Min 760 mV
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 18V
安装方式 Surface Mount
引脚数 8

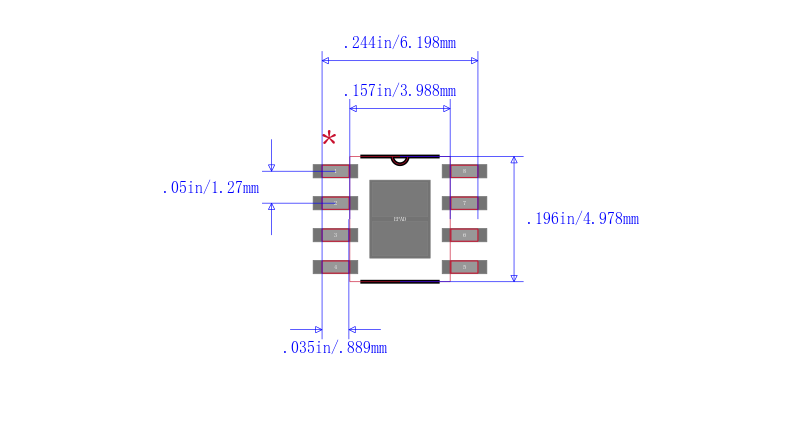

封装 HSOP-8
封装 HSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54328DDA TI 德州仪器 | 当前型号 | 当前型号 |
TPS54328DDAR 德州仪器 | 类似代替 | TPS54328DDA和TPS54328DDAR的区别 |
