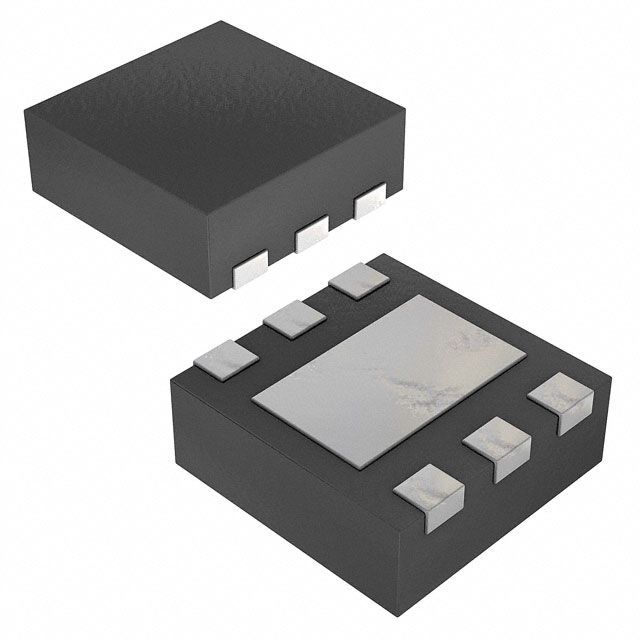

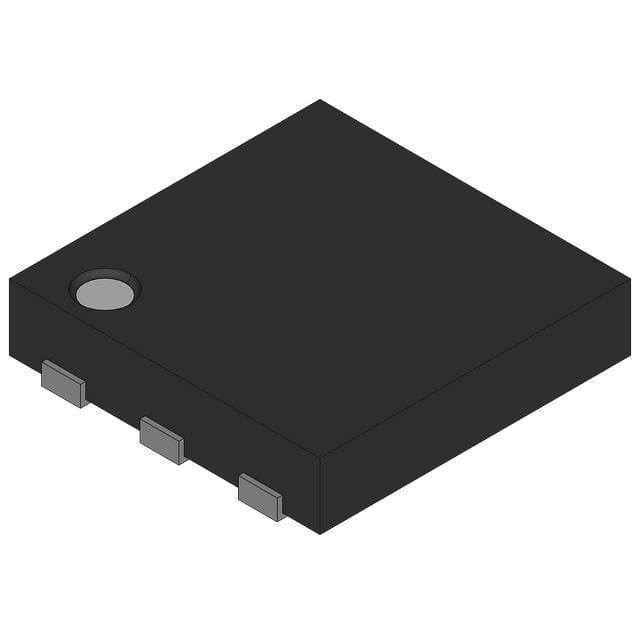

TEXAS INSTRUMENTS TPS7A3701DRVT 电压稳压器, LDO, 可调, 2.2V至5.5V输入, 130mV压差, 1.2V至5.5V/1A输出, SON-6
PMIC - 稳压器 - 线性 正 可调式 输出 1A 6-WSON(2x2)
得捷:
IC REG LINEAR POS ADJ 1A 6WSON
立创商城:
TPS7A3701DRVT
德州仪器TI:
1-A, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable
贸泽:
低压差稳压器 SGL Out LDO 1A Adj Reverse Crnt Protect
e络盟:
电压稳压器, LDO, 可调, 2.2V至5.5V输入, 130mV压差, 1.2V至5.5V/1A输出, SON-6
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO TPS7A3701DRVT linear regulator manufactured by Texas Instruments. It has an overall accuracy of ±0.23 %. This voltage regulation device&s;s single output can produce a current up to 1 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.2 V and no higher than 5.5 V. With an adjustable output that has a voltage of 1.2 to 5.5 V, this is power management at its best. A load regulation of 0.5%Typ and line regulation of 0.01%/VTyp is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 150 °C.
安富利:
LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin SON T/R
Chip1Stop:
LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin WSON EP T/R
Verical:
LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin WSON EP T/R
Newark:
# TEXAS INSTRUMENTS TPS7A3701DRVT IC, LDO VOLT REG, 1A, 2.2V-5.5V, SON-6
输出接口数 1
输出电压 1.2V ~ 5.5V
输出电流 1 A
针脚数 6
静态电流 0.4 mA
输出电容类型 Ceramic
跌落电压 130 mV
调节输出数 1
过温保护 Yes
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Max 5.5 V
输出电压Min 1.2 V
输出电流Max 1 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±0.23 %
输入电压 2.2V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 WDFN-6
封装 WDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS7A3701DRVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS7A3701DRVR 德州仪器 | 类似代替 | TPS7A3701DRVT和TPS7A3701DRVR的区别 |
MIC5319BMLTR 迈瑞 | 功能相似 | TPS7A3701DRVT和MIC5319BMLTR的区别 |
