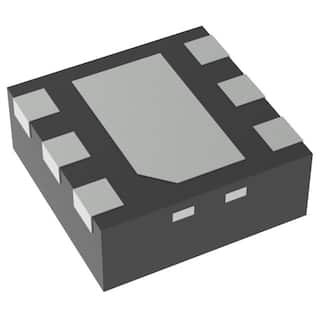

TEXAS INSTRUMENTS TPS62590DRVT 直流-直流开关降压逐步递减稳压器, 可调, 2.5V-5.5V输入, 750mV-5.5V输出, 1A输出, SON-6
降压直流/直流转换器(集成开关)最大输入高达 6V,TPS 系列,Texas Instruments
得捷:
IC REG BUCK ADJUSTABLE 1A 6SON
立创商城:
TPS62590DRVT
德州仪器TI:
2.25MHz, 1A Step-Down Converter in 2 x 2 SON Package
欧时:
Texas Instruments TPS62590DRVT 降压 开关稳压器, 2.5 → 5.5 V输入, 1A最大输出
e络盟:
TEXAS INSTRUMENTS TPS62590DRVT 直流-直流开关降压逐步递减稳压器, 可调, 2.5V-5.5V输入, 750mV-5.5V输出, 1A输出, SON-6
艾睿:
Adjust the voltage level of your devices with this step down TPS62590DRVT DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 0.75 to 5.5 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of -1%/ATyp. Its switching regulator has a frequency of 2250Typ kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
安富利:
Conv DC-DC Single Step Down 2.5V to 5.5V 6-Pin WSON EP T/R
Chip1Stop:
Step-Down Regulator 2.25MHz, 1A Step-Down Converter in 2 x 2 SON Package Conv DC-DC 2.5V to 5.5V Step Down Single-Out 0.75V to 5.5V 1A 6-Pin WSON EP T/R
Verical:
Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.75V to 5.5V 1A 6-Pin WSON EP T/R
Win Source:
Buck Switching Regulator IC Positive Adjustable 0.75V 1 Output 1A 6-WDFN Exposed Pad
DeviceMart:
IC REG BUCK SYNC ADJ 1A 6SON
输出接口数 1
输出电压 0.75V ~ 5.5V
输出电流 1 A
针脚数 6
静态电流 15.0 µA
调节输出数 1
输出功率 1.3 W
开关频率 2.25 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Max 5.5 V
输出电压Min 0.75 V
输出电流Max 1 A
最大占空比 100 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5 V
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 SON-6
长度 2.1 mm
宽度 2.1 mm
高度 0.75 mm
封装 SON-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62590DRVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS62590DRVR 德州仪器 | 完全替代 | TPS62590DRVT和TPS62590DRVR的区别 |
