TPS2067DR概述

限流配电开关 CURRENT-LIMITED, POWER-DISTRIBUTION SWITCHES

Use this high side switch and usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. With a small input voltage of 2.7 V and a max of 5.5 V, this will supply sufficient power to your circuit. Its current limit is 1.5 A. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This USB powered network switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.

TPS2067DR中文资料参数规格
技术参数

电源电压DC 5.50V max

输出接口数 3

输入电压DC 5.50 V

输出电流 1 A

耗散功率 898.47 mW

输入电压Max 5.5 V

输入电压Min 2.7 V

输出电流Max 1 A

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 898.47 mW

输入电压 2.7V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 16

封装 SOIC-16

外形尺寸

封装 SOIC-16

物理参数

工作温度 -40℃ ~ 125℃ TJ

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

TPS2067DR引脚图与封装图

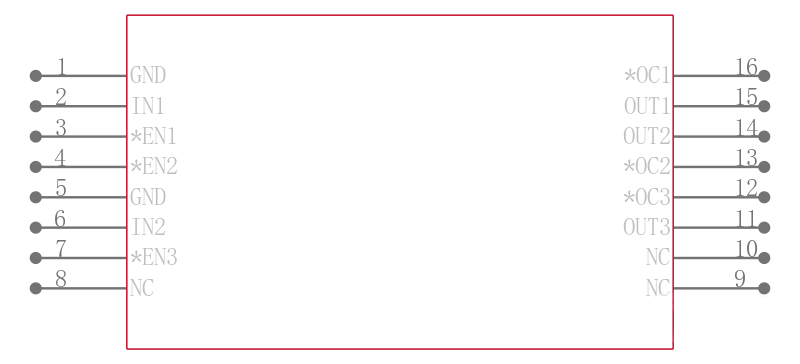

TPS2067DR引脚图
TPS2067DR封装图
TPS2067DR封装焊盘图
在线购买TPS2067DR
型号: TPS2067DR
制造商: TI 德州仪器
描述:限流配电开关 CURRENT-LIMITED, POWER-DISTRIBUTION SWITCHES
替代型号TPS2067DR
型号/品牌 代替类型 替代型号对比

TPS2067DR

TI 德州仪器

当前型号

当前型号

TPS2067D

德州仪器

完全替代

TPS2067DR和TPS2067D的区别

TPS2067DRG4

德州仪器

完全替代

TPS2067DR和TPS2067DRG4的区别

TPS2067DG4

德州仪器

完全替代

TPS2067DR和TPS2067DG4的区别
