4.5V至18V输入, 2 -A同步降压型转换器SWIFTTM与生态Modeâ ?? ¢ 4.5V to 18V Input, 2-A Synchronous Step-Down SWIFTTM Converter with Eco-Modeâ¢
DESCRIPON
The TPS54226 is a adaptive on-time D-CAP2™ mode synchronous buck converter. TheTPS54226 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54226 uses the D-CAP2™ mode control which provides a fast transient response with no external compensation components. The adoptive on-time control supports seamless operation between PWM mode at heavy load condition and reduced frequency Eco-Mode™ operation at light load for high efficiency.
FEATURES
• D-CAP2™ Mode Enables Fast Transient Response
• Low Output Ripple and Allows Ceramic Output Capacitor
• Wide VCC Input Voltage Range: 4.5 V to 18 V
• Wide VIN Input Voltage Range: 2 V to 18 V
• Output Voltage Range: 0.76 V to 5.5 V
• Highly Efficient Integrated FET’s Optimized for Lower Duty Cycle Applications
– 160 mΩ High Side and 110 mΩ Low Side
• High Efficiency, less than 10 μA at shutdown
• Auto-Skip Eco-Mode™ for High Efficiency at Light Load
• High Initial Bandgap Reference Accuracy
• Adjustable Soft Start
• Pre-Biased Soft Start
• 700-kHz Switching Frequency fSW
• Cycle By Cycle Over Current Limit
• Power Good Output
• Auto-Skip Mode
APPLICATIONS
• Wide Range of Applications for Low Voltage System
– Digital TV Power Supply
– High Definition Blu-ray Disc™ Players
– Networking Home Terminal
– Digital Set Top Box STB
输出接口数 1
输出电压 0.76V ~ 5.5V
输出电流 2 A
静态电流 800 µA
调节输出数 1
开关频率 700 kHz
拓扑结构 Buck
开关电流 3.1 A
输入电压Max 18 V
输入电压Min 2 V
输出电压Max 5.5 V
输出电压Min 0.76 V
输出电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 18V
输入电压 4.5V ~ 18V
安装方式 Surface Mount
引脚数 16

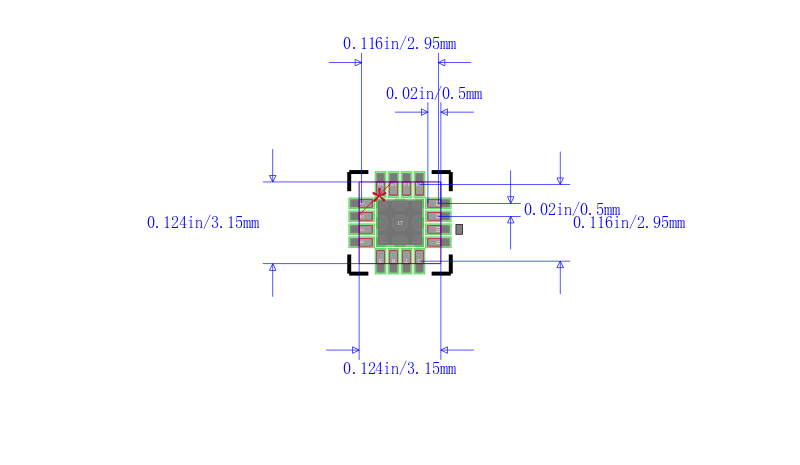

封装 VQFN-16
封装 VQFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54226RGTR TI 德州仪器 | 当前型号 | 当前型号 |
TPS54226RGTT 德州仪器 | 完全替代 | TPS54226RGTR和TPS54226RGTT的区别 |
