TEXAS INSTRUMENTS TPS736125DRBT 固定电压稳压器, LDO, 1.7V至5.5V, 75mV压差, 1.25V输出, 400mA输出, SON-8
If you need to maintain a steady voltage on your circuit, then this LDO linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 0.075@400mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device"s single output can produce a current up to 0.4 A. Use this part at voltages between 1.7 V and 5.5 V. With a fixed output that has a voltage of 1.25 V, this is power management at its best. At a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 5.50V max
输出电压 1.25 V
输出电流 400 mA
针脚数 8
耗散功率 2500 W
静态电流 0.3 mA
输出电容类型 Ceramic
跌落电压 75 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电流Max 0.4 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 1.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8

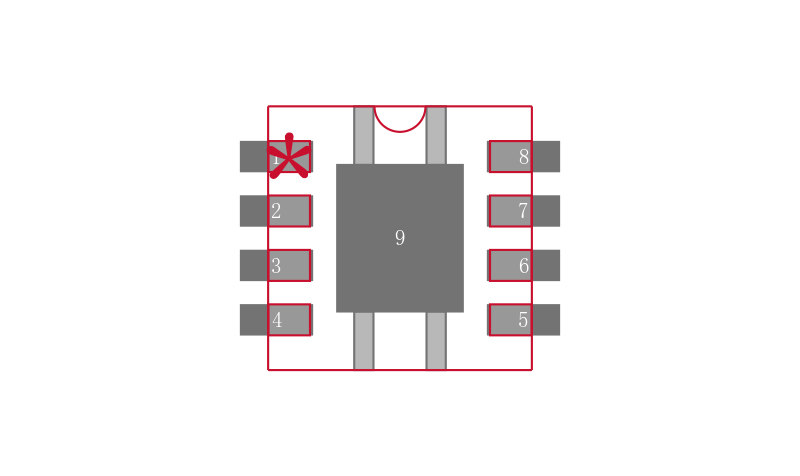

封装 VDFN-8

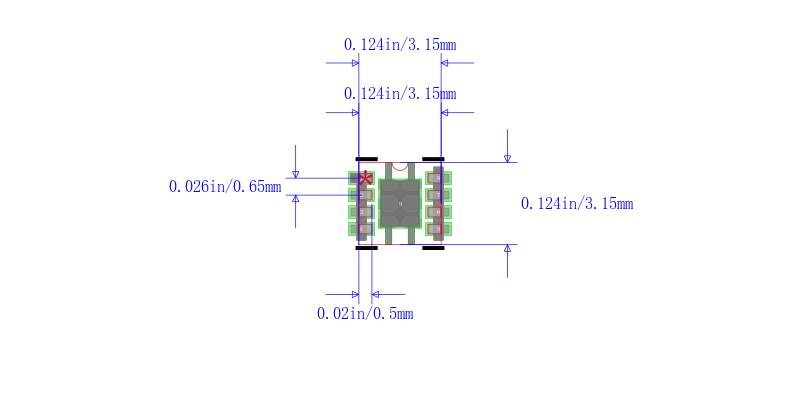

长度 3 mm
宽度 3 mm
高度 0.88 mm
封装 VDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS736125DRBT TI 德州仪器 | 当前型号 | 当前型号 |
TPS736125DRBR 德州仪器 | 类似代替 | TPS736125DRBT和TPS736125DRBR的区别 |
TPS736125DRBTG4 德州仪器 | 类似代替 | TPS736125DRBT和TPS736125DRBTG4的区别 |
TPS736125DRBRG4 德州仪器 | 功能相似 | TPS736125DRBT和TPS736125DRBRG4的区别 |
