具有使能功能的 250mA、双通道低压降稳压器 10-VSON -40 to 125
PMIC - 稳压器 - 线性 正 可调(固定) 2 输出 250mA 10-VSON(3x3)
得捷:
IC REG LIN POS ADJ 250MA 10VSON
立创商城:
TPS71219DRCR
德州仪器TI:
250-mA, dual-channel low-dropout voltage regulator with enable
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO TPS71219DRCR linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.125@250mA V. This device has a maximum power dissipation of 1920 mW. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s 2 outputs can produce a current up to 0.25 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 5.5 V. With an adjustable|fixed output that has a voltage of 1.2 to 5.5|1.8 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.8%/mATyp and line regulation of 0.05%/VTyp. Its maximum power dissipation is 1920 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.23@250mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 1.2V to 5.5V1.8V 0.25A 10-Pin VSON EP T/R
Chip1Stop:
Dual Channel LDO Dual 250 mA Output, UltraLow Noise, High PSRR Low Dropout Linear Regulator LDO Regulator Pos 1.2V to 5.5V1.8V 0.25A 10-Pin VSON EP T/R
Verical:
LDO Regulator Pos 1.2V to 5.5V1.8V 0.25A 10-Pin VSON EP T/R
输出接口数 2
输出电流 250 mA
供电电流 250µA ~ 600µA
耗散功率 1.92 W
静态电流 300 µA
输出电容类型 Ceramic
跌落电压 0.125V @250mA
调节输出数 2
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电压Max 5.5 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1920 mW
精度 3 %
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount

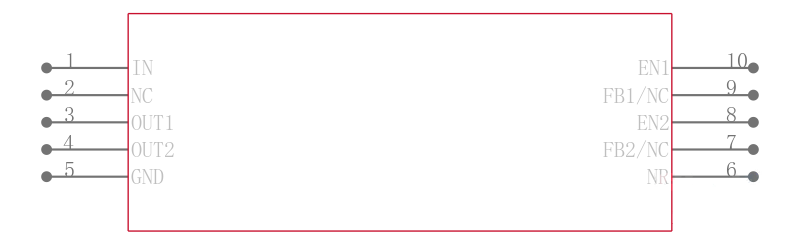

引脚数 10

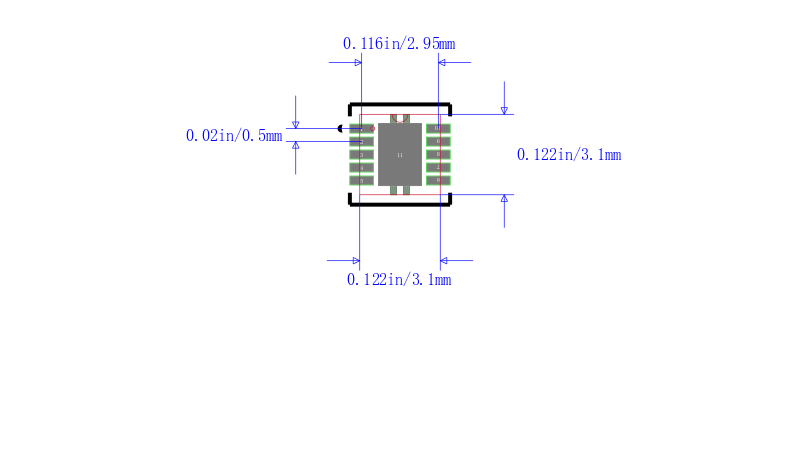

封装 VFDFN-10
封装 VFDFN-10
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS71219DRCR TI 德州仪器 | 当前型号 | 当前型号 |
TPS71219DRCT 德州仪器 | 完全替代 | TPS71219DRCR和TPS71219DRCT的区别 |
TPS71334DRCT 德州仪器 | 完全替代 | TPS71219DRCR和TPS71334DRCT的区别 |
TPS71334DRCR 德州仪器 | 类似代替 | TPS71219DRCR和TPS71334DRCR的区别 |
