TPS7A7100RGWR

1 -A ，快速瞬态，低压差稳压器 1-A, Fast-Transient, Low-Dropout Voltage Regulator

The TPS7A7100 low-dropout LDO voltage regulator is designed for applications seeking very-low dropout capability 140 mV at 1 A with an input voltage from 1.5 V to 6.5 V. The TPS7A7100 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, eliminating external resistors and any associated error.

The TPS7A7100 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails.

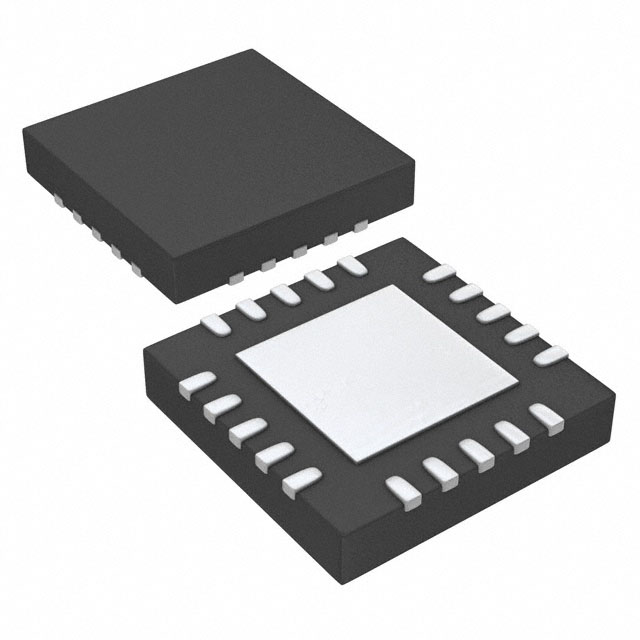

The TPS7A7100 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages.
