TL1963A-33DCYR

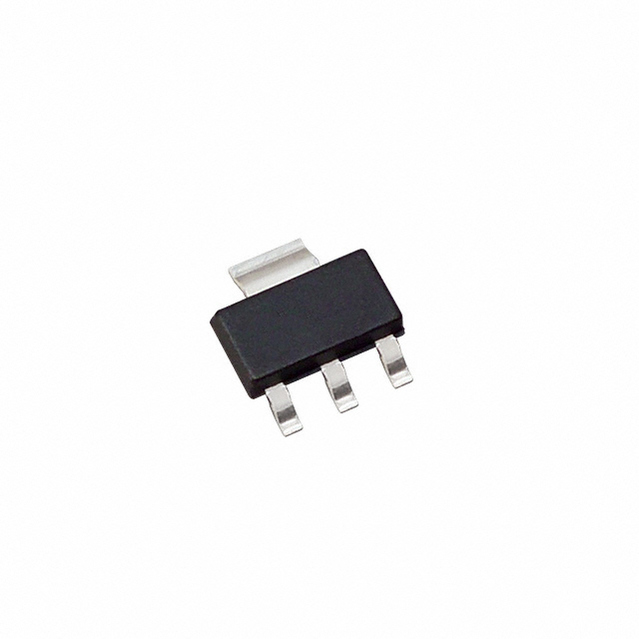

TEXAS INSTRUMENTS  TL1963A-33DCYR  固定电压稳压器, LDO, 2.1V至20V, 340mV压差, 3.3V输出, 1.5A输出, SOT-223-3

The is a 1.5A low-noise fast-transient-response LDO Regulator optimized for fast transient response. The device can supply 1.5A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to less than 1µA in shutdown. Quiescent current is well controlled; it does not rise in dropout as with many other regulators. In addition to fast transient response, the TL1963A-xx regulators have very low output noise, which makes them ideal for sensitive RF supply applications.

.

40µVRMS Low noise

.

1mA Quiescent current

.

No protection diodes needed

.

Controlled quiescent current in dropout

.

Less than 1µA Quiescent current in shutdown

.

Stable with 10µF ceramic output capacitor

.

Reverse-battery protection

.

Reverse-current protection

.

Green product and no Sb/Br

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
